Address Verification implementation guide

1Before you begin

Address Verification checks and corrects addresses inside Salesforce. A user clicks Verify on a record, or Salesforce checks records in the background. Address Verification also writes extra data to the record, for example the county, the latitude and longitude, and the time zone.

This guide takes you from the install to a first verified address on an Account. It covers physical addresses on Accounts, Contacts, Leads and custom objects, and the email and phone checks.

Smarty and lookups

Address Verification sends each address to Smarty, at smarty.com. Smarty is a separate company that holds the address data. Each check of one address uses one lookup from a Smarty plan.

• You can buy a Smarty plan through TAF. TAF then gives a discount on the app and sends you the Smarty keys.
• You can also use your own Smarty account. Smarty offers a free trial with 1,000 US address lookups for 42 days, with no credit card. TAF advises it for a first test of the app.

What you need

• A Salesforce org in Enterprise Edition or higher.
• A user with admin rights in that org.
• A sandbox, to set Address Verification up there first.
• Lightning Experience. Most steps also work in Classic. For the differences, open a case.
• The Auth ID and the Auth Token of a Smarty account. The next chapters tell you where they come from.

Email and phone checks

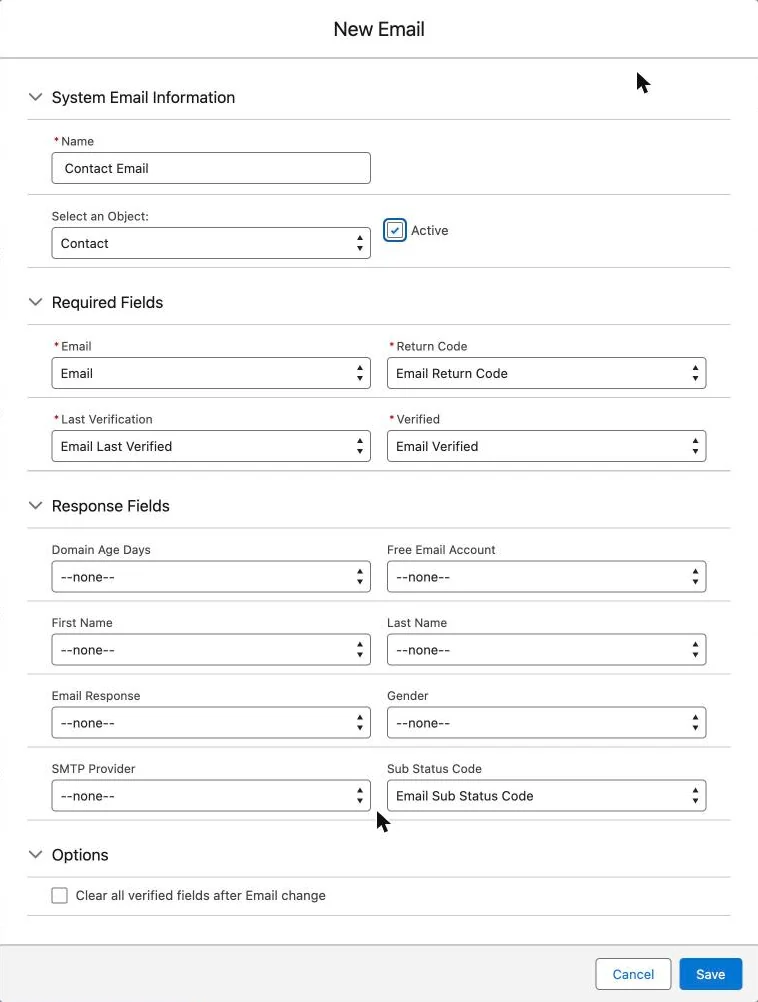

Address Verification can also check email addresses and phone numbers. These checks are add-ons that TAF turns on for your org. To buy them, email [email protected]. See Check email addresses and phone numbers.

Try it first

Address Verification has a free trial of 30 days. Start it from the AppExchange listing, or book a demo with TAF.

2Install Address Verification

Install into a sandbox first. When the whole guide works there, come back and install into production.

If TAF sent you an install link, for example with an invoice or with a Smarty plan, open that link and sign in. Then go on at step 5.

1. 1Mark step 1 done

   Open the Address Verification listing on the AppExchange. Click Get It Now.

   Go to Address Verification on the AppExchange. Sign in when the AppExchange asks. It shows a Trailblazer sign-in or a Salesforce login page. A Trailblazer account is the free login for Trailhead and the AppExchange. If the AppExchange lists your orgs and your org is not there, link it to your Trailblazer account first. The top of the site now reads AgentExchange. It is the same marketplace.

   Copy link
2. 2Mark step 2 done

   Pick your sandbox as the place to install.

   A window asks Where do you want to install this package?. Pick the login of your sandbox. Then click the install button.

   If the window offers only Install in Production, click Cancel. Open the Address Verification change log and click Install in a sandbox. Sign in to your sandbox, and go on at step 5.

   Later, when the whole guide works in the sandbox, repeat these steps and install in production.

   Copy link
3. 3Mark step 3 done

   If a terms box shows, tick it. Then click Confirm and Install.

   Some installs show the box I have read and agree to the terms and conditions. If yours does not, go to the next step.

   Copy link
4. 4Mark step 4 done

   Sign in to the org, if Salesforce asks.

   Salesforce opens the install page. Its title reads Install Address Verification from To A Finish. The Version Number sits below the buttons. When Address Verification is already in the org, the page offers Upgrade in place of Install.

   Copy link
5. 5Mark step 5 done

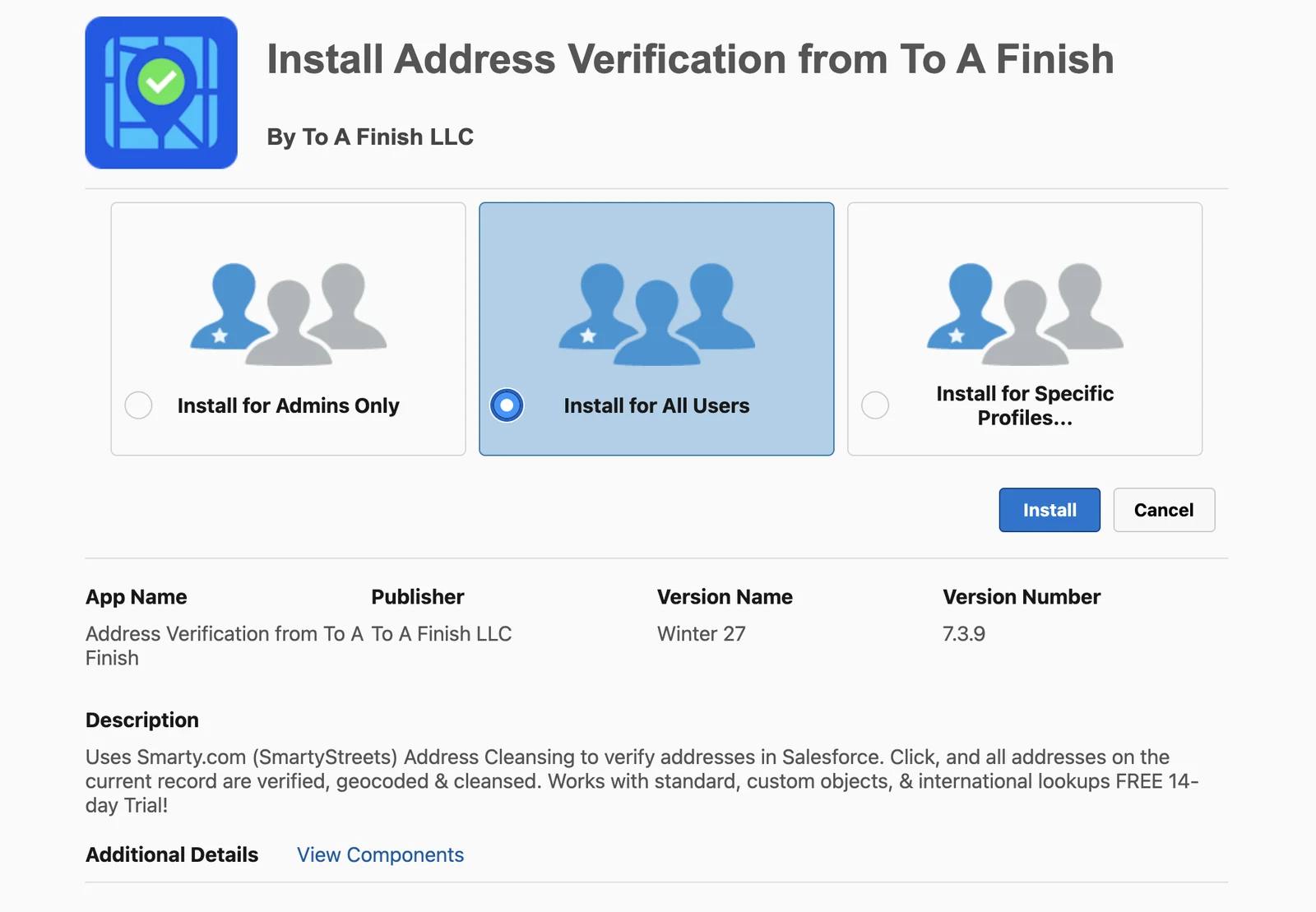

   Pick Install for All Users. Then click Install.

   The three choices are Install for Admins Only, Install for All Users and Install for Specific Profiles. Only an admin sets Address Verification up, but every user who works with addresses needs access to its fields and buttons.



   Copy link
6. 6Mark step 6 done

   Approve third-party access. Then click Continue.

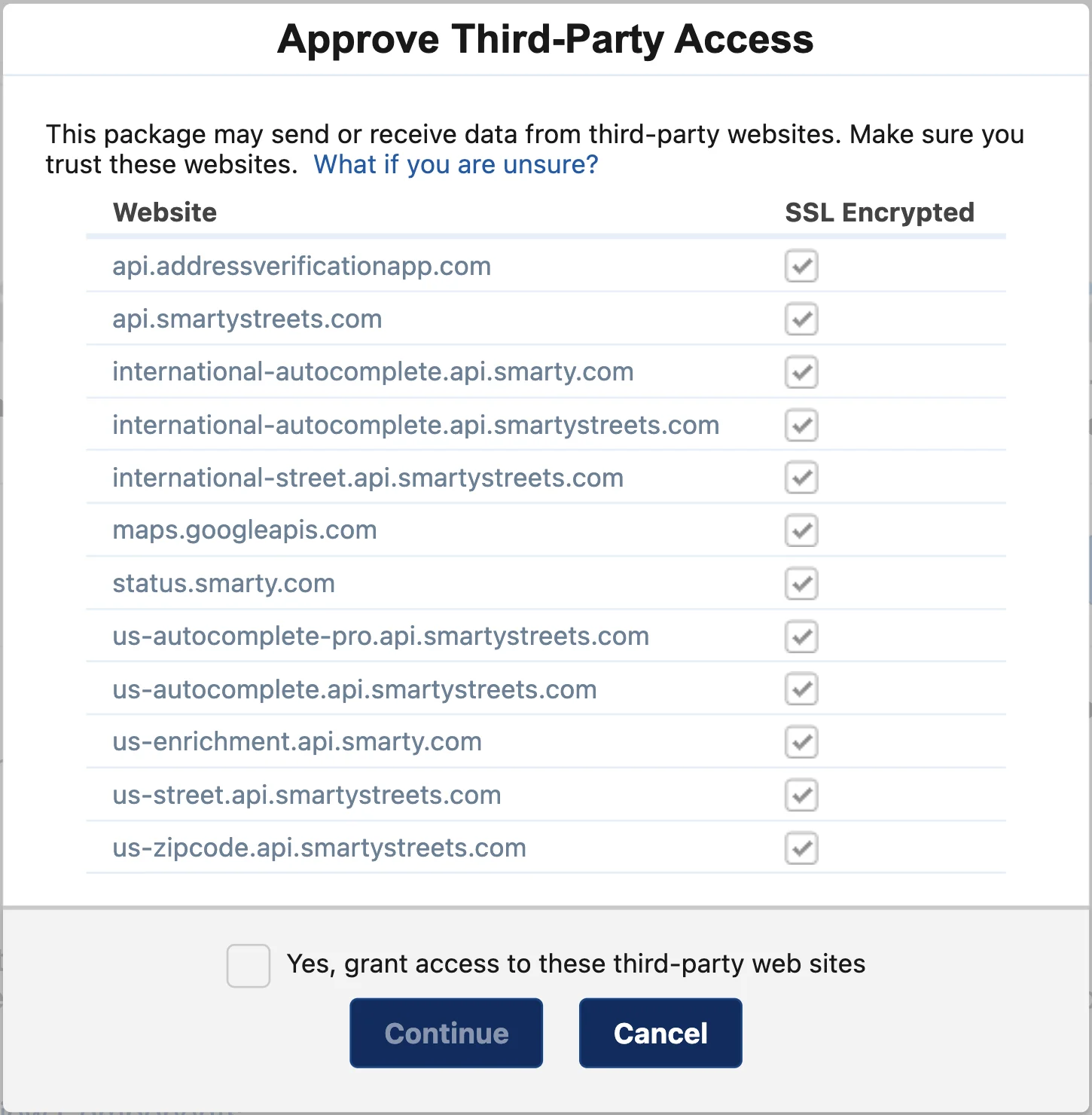

   A window named Approve Third-Party Access lists the web sites that Address Verification calls. They are the Smarty services, Google Maps and the TAF service for email and phone checks.



   Tick Yes, grant access to these third-party web sites. Click Continue.

   When the install takes a while, Salesforce says it will email you when it finishes. Installed Packages then lists √ Address Verification, with the namespace prefix smartystreets. The name starts with a check mark. Many names in the app start with the prefix.

   Copy link
7. 7Mark step 7 done

   Assign Address Verification (Admin) to each admin who sets up Address Verification.

   Address Verification has four permission sets. This guide needs the first two.

   Who	Permission set	What it allows
   Admins who set up Address Verification	Address Verification (Admin)	Full use of the app, with the setup page.
   Every other user who works with addresses	Address Verification (User)	Full use of the app, without the admin features.
   The guest user of a Salesforce Site	Address Verification (Guest User)	Checks of records that site visitors make. Skip it if you have no site.
   Users of an Experience Cloud site	Address Verification (Community)	Checks on an Experience Cloud site. Skip it if you have no site.

   Open Setup. In the Quick Find box, type Permission Sets. Click Permission Sets. Click Address Verification (Admin). Click Manage Assignments, then Add Assignment. Tick each admin. Click Next. Salesforce asks whether the assignment expires. Leave it with no expiration date. Click Assign.

   Copy link
8. 8Mark step 8 done

   Assign Address Verification (User) to every other user who works with addresses.

   Go back to Permission Sets. Click Address Verification (User). Assign it the same way.

   Copy link

3Connect Address Verification to Smarty

Address Verification needs the keys of your Smarty account. Smarty gives each account two values that work like a user name and a password: the Auth ID and the Auth Token.

• If you bought your Smarty plan through TAF, TAF sends you the keys and the name of your license.
• If you use your own Smarty account, copy the Auth ID and the Auth Token of a secret key from your Smarty account.

Keep the keys private. Anyone who has them can spend the lookups of your plan.

1. 1Mark step 1 done

   Open the Address Verification setup page.

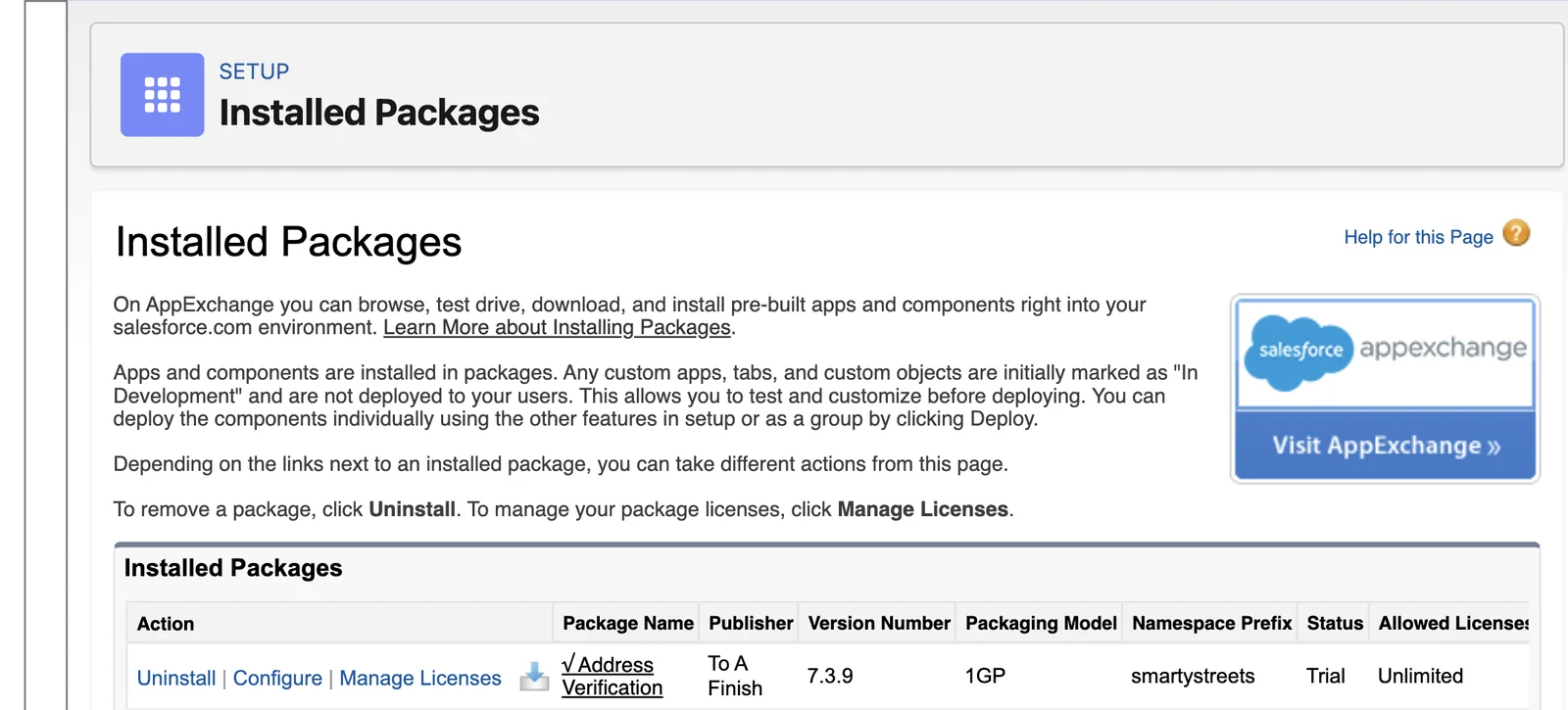

   Open Setup. In the Quick Find box, type Installed Packages. Click Installed Packages. Click Configure beside √ Address Verification.

   The setup page can take about 10 seconds to load. It opens on the Authentication tab. The other tabs are Data Mapping, Options, Automation and More.... You need the permission set Address Verification (Admin) for this page.

   Copy link
2. 2Mark step 2 done

   Open Address Verification Default.

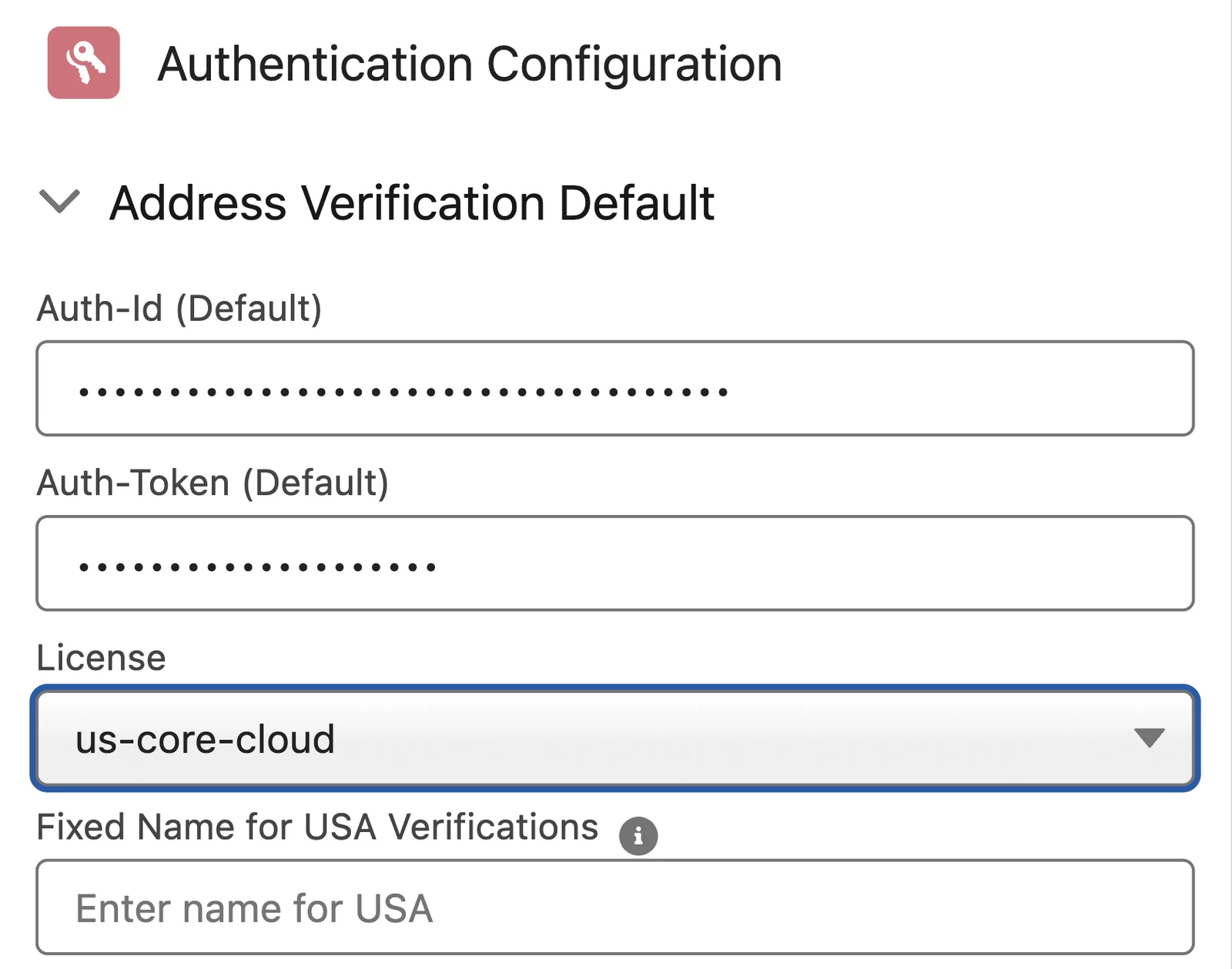

   Under Authentication Configuration, click Address Verification Default to open it, if it is closed.

   Copy link
3. 3Mark step 3 done

   Paste the Auth ID into Auth-Id (Default). Paste the Auth Token into Auth-Token (Default).

   Paste each value exactly, with no space before or after it. The boxes show dots in place of the values.



   Copy link
4. 4Mark step 4 done

   In License, pick the license of your Smarty plan.

   TAF names the license when it sends the keys. With your own Smarty account, find your plan on the Subscriptions page of your Smarty account.

   The names in the list follow the Smarty plans. For example, the plan US Address Verification, Core Edition with a Cloud License uses us-core-cloud.

   Copy link
5. 5Mark step 5 done

   Click Save All Settings.

   A message reads Successfully saved the setting.

   Copy link
6. 6Mark step 6 done

   Click Verify.

   Verify sits in the Address Verification Default section. It checks the keys with Smarty and uses one lookup. When the keys work, a message reads The Settings are Correct for US Addresses!

   If a button floats over Verify, see A button on the setup page covers a field.

   Copy link
7. 7Mark step 7 done

   Type the address for error emails in Admin Emails. Then click Save All Settings.

   Admin Emails sits under Optional Settings, lower on the Authentication tab. Type one email address, or several with commas between them. Address Verification sends its error emails there. When the box is empty, the errors go to the last three admins who logged in.

   Copy link

4Set up the addresses

Address Verification checks only the addresses on the Data Mapping tab. Each entry names an object, its address fields, and the fields where Address Verification writes the result. The app comes with fields for the standard addresses of Accounts, Contacts and Leads.

1. 1Mark step 1 done

   On the setup page, click the Data Mapping tab.

   Copy link
2. 2Mark step 2 done

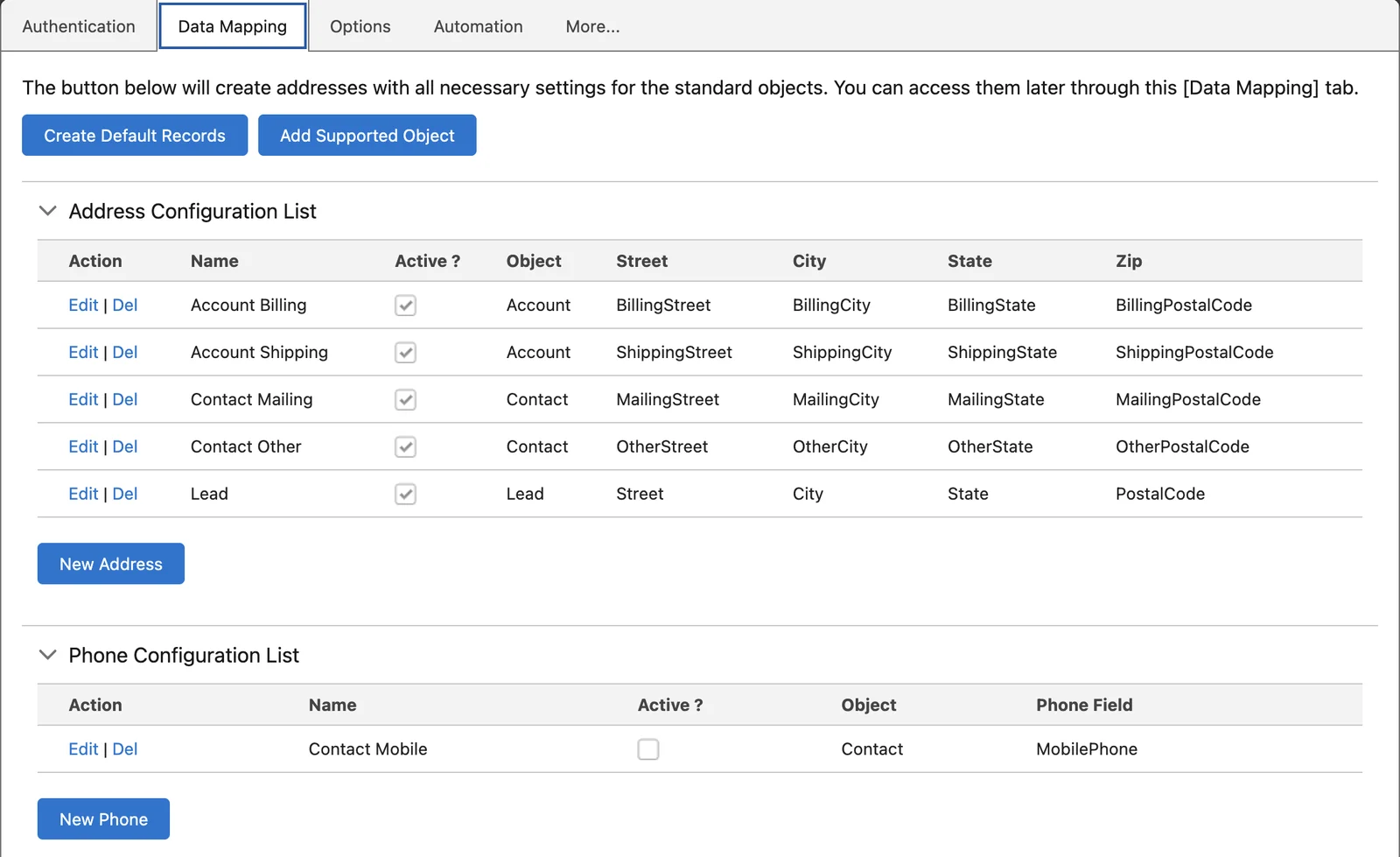

   Click Create Default Records.

   A message reads Reset Done Successfully. The list stays empty until you reload the page. Reload it.

   The Address Configuration List now holds an entry for each standard address: Account Billing, Account Shipping, Contact Mailing, Contact Other and Lead. With Person Accounts, there is one more entry.

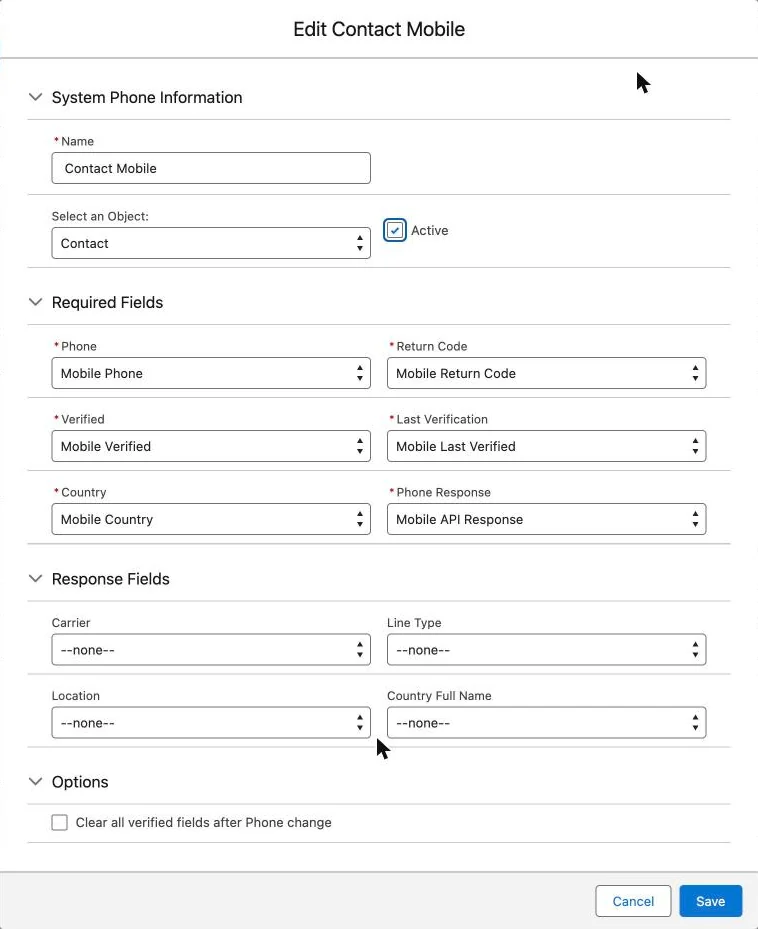

   The Phone Configuration List gets a Contact Mobile entry. It is not active. Lower on the tab, more lists hold the entries for emails and other data.



   Copy link
3. 3Mark step 3 done

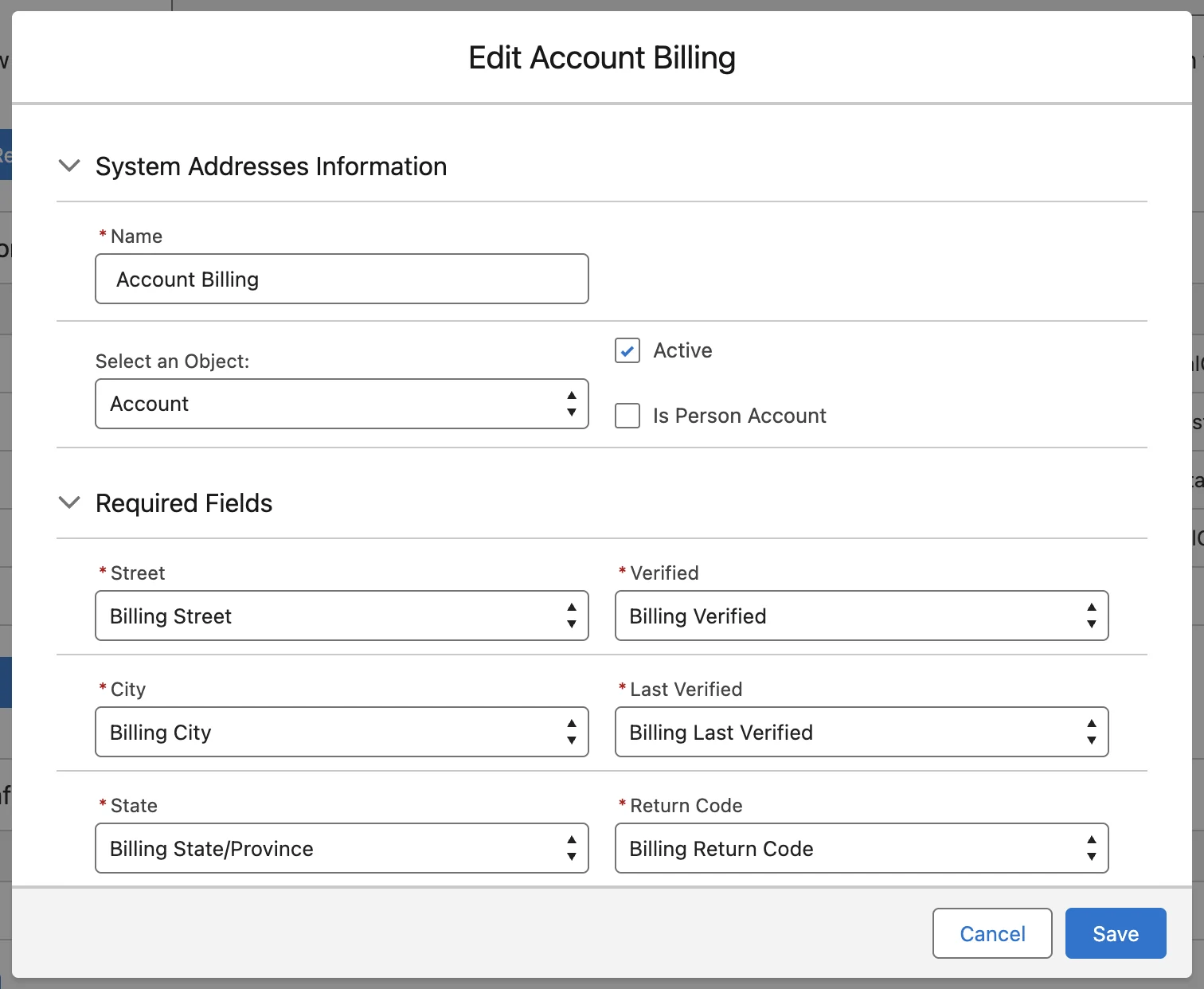

   Click Edit beside Account Billing. Look at the fields.

   A window shows the fields and the options of the entry. The required fields are already filled in: Street, City, State, Zip Code, Country, Verified, Last Verified, Return Code and Footnotes.

   Some optional fields are filled in too, for example Latitude, Longitude, Clean Street, Do Not Verify and Verification Used.



   Copy link
4. 4Mark step 4 done

   Set the options you need. Then click Save.

   Most orgs leave the options as they are at first. See Address options below. If you change nothing, close the window.

   Copy link

The fields of an entry

Address options

Each entry has its own options, at the bottom of the edit window. The options under For Autocomplete Lightning Component Only: work only with the autocomplete component.

5Check the main options

Optional. Most orgs leave these options as they are.

The options on the Authentication and Options tabs change how Address Verification works for the whole org. The options of one address sit in its entry on the Data Mapping tab.

After a change on the Authentication tab, click Save All Settings. After a change on the Options tab, click Save Settings.

On the Options tab and in the entry windows, a tick shows an option that is on. A + shows an option that is off. Click the box to change it.

Options on the Authentication tab

The first three options sit in the Address Verification Default section. The others sit under Optional Settings.

Options on the Options tab

International addresses

With Verify International off, Address Verification skips every address whose Country is not empty and is not a form of USA.

With it on, Address Verification checks those addresses with the international service of Smarty. This needs an international plan. To buy one, email [email protected]. Turn the option on only after the plan is active. Without the plan, every international address shows an error.

If the international plan has its own Auth ID and Auth Token, paste them in Address Verification International on the Authentication tab. Then click Save All Settings.

The same section holds four more options for international addresses. Click the section to open it.

Turn on Verify International on the Options tab. Then click Save Settings.

6Track address changes

Optional. Skip this chapter if you do not need a history of address changes.

Field history shows who changed an address, and when. This chapter uses Account. Contact and Lead work the same way.

1. 1Mark step 1 done

   Open Account in Object Manager. Click Fields & Relationships.

   Open Setup. Click Object Manager. Click Account. Click Fields & Relationships.

   Copy link
2. 2Mark step 2 done

   Click Set History Tracking.

   The button sits at the right end of the Fields & Relationships header. In a narrow window, the page can cut it off. Make the window wider, or zoom out, to see it.

   The page Account Field History opens.

   Copy link
3. 3Mark step 3 done

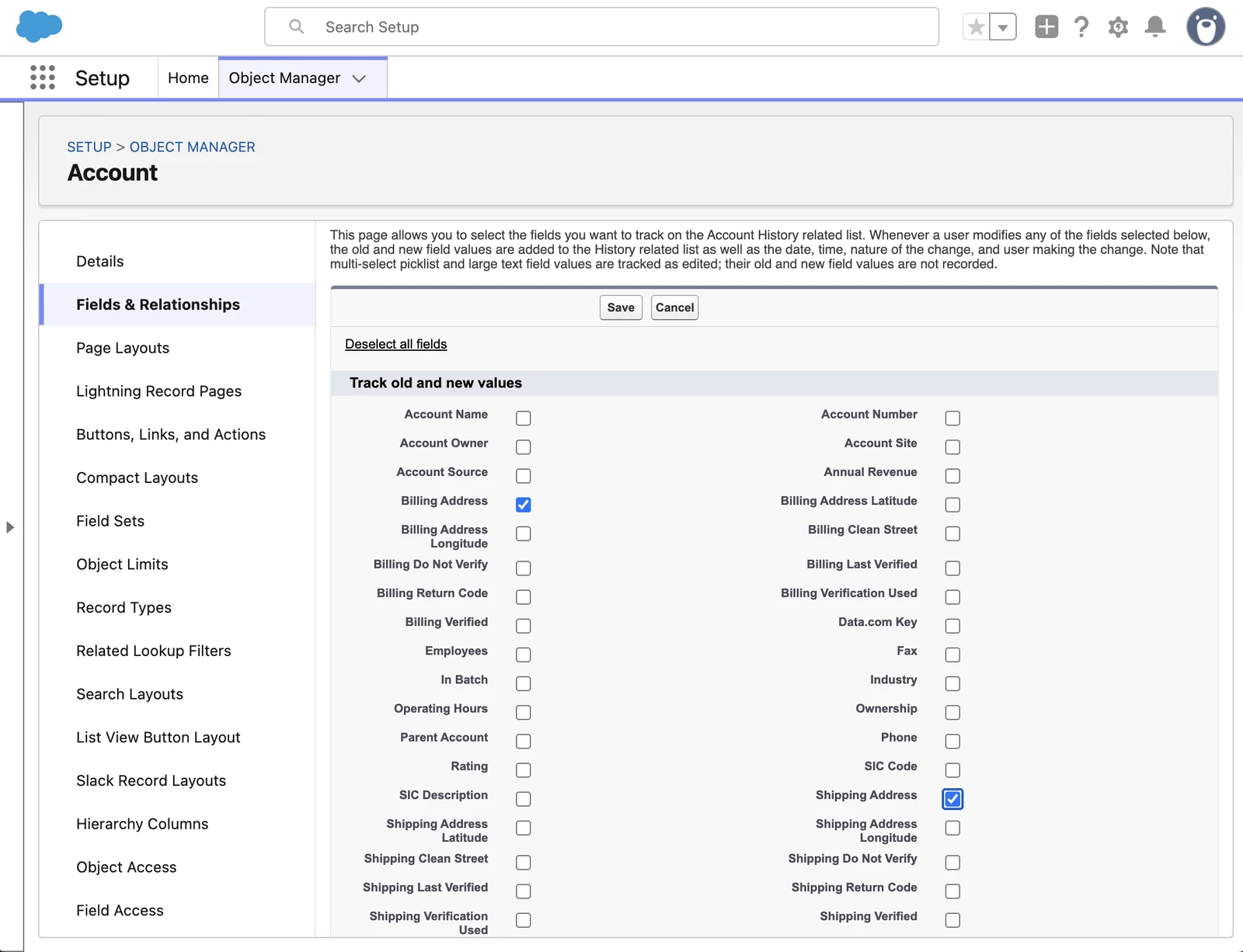

   Tick Enable Account History, if it is not ticked.

   The list of fields shows when the box is ticked.

   Copy link
4. 4Mark step 4 done

   Tick Billing Address and Shipping Address. Then click Save.

   You can also tick the Address Verification fields, for example Billing Verified and Billing Return Code.



   Copy link
5. 5Mark step 5 done

   Do the same for Contact and Lead.

   On Contact, tick Mailing Address and Other Address. On Lead, tick Address.

   Copy link

7Add the Verify button

The Verify Addresses action checks every address on the record. This chapter uses Account. Contact and Lead work the same way, but each object has its own action:

1. 1Mark step 1 done

   Open Account in Object Manager. Click Page Layouts.

   Open Setup. Click Object Manager. Click Account. Click Page Layouts.

   Copy link
2. 2Mark step 2 done

   Open the layout your users work with.

   Click the layout name, for example Account Layout. If you have more than one layout, click Page Layout Assignment to see which profile uses which layout.

   Copy link
3. 3Mark step 3 done

   Optional: add the Address Verification fields.

   In the palette at the top, click Fields. Drag the fields you want to see into the layout, for example Billing Address Status and Billing Last Verified. A new section keeps them together.

   Copy link
4. 4Mark step 4 done

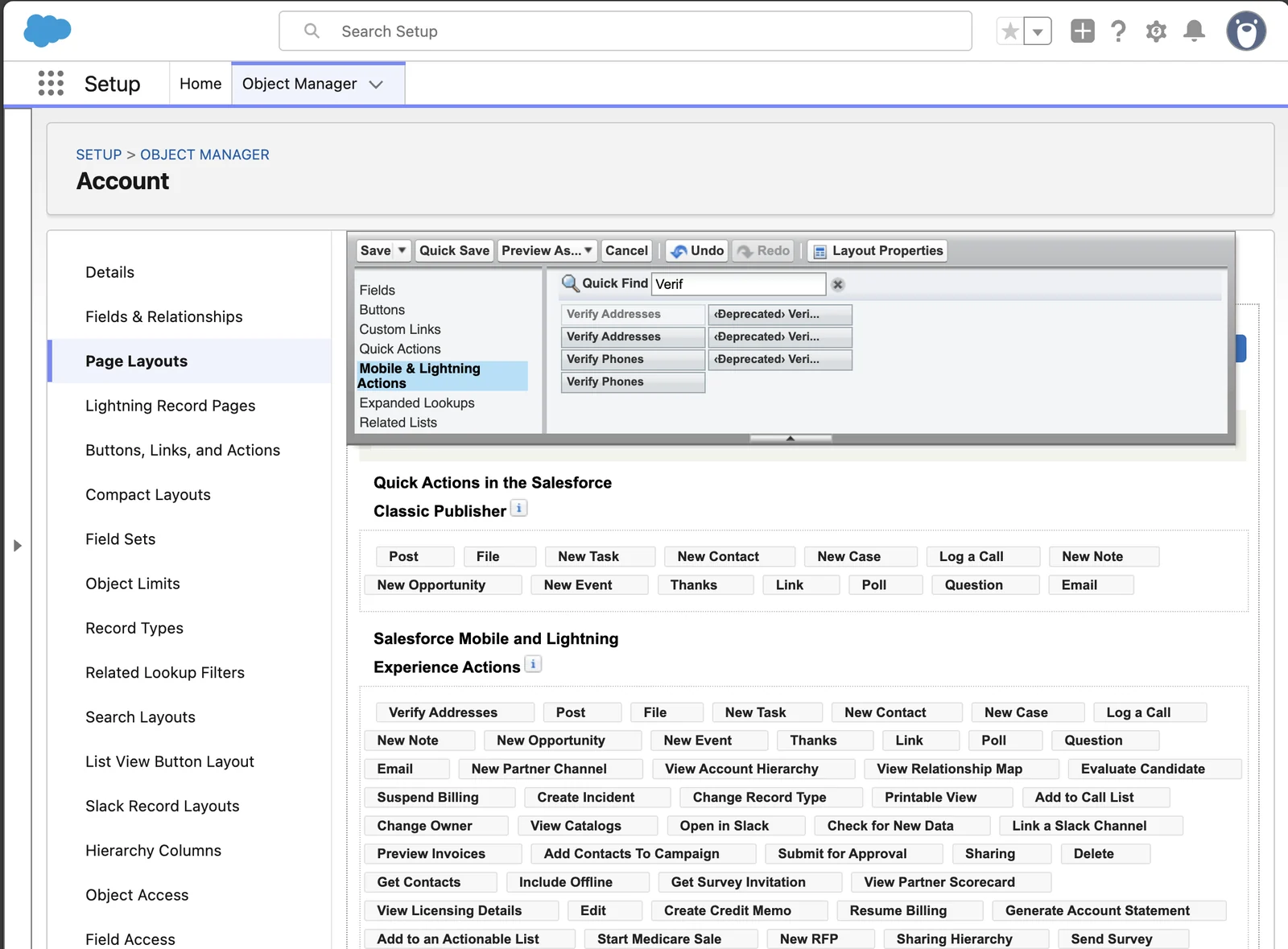

   Drag Verify Addresses into the Salesforce Mobile and Lightning Experience Actions section.

   In the palette, click Mobile & Lightning Actions. In the palette's Quick Find box, type Verif to show only the Verify actions. More than one action reads Verify Addresses. Point at each one to see its name. The name of a Quick Action starts with the object name and a dot, for example Account. On Account, use the one named:

   smartystreets__Verify_AddressesCompCopy

   Do not use the actions that start with (Deprecated). If the section asks you to override the predefined actions, click the link to do so first.



   Copy link
5. 5Mark step 5 done

   Optional: add the Account History related list.

   If you did Track address changes, click Related Lists in the palette. Drag Account History into the Related Lists section.

   Copy link
6. 6Mark step 6 done

   Click Save.

   If Salesforce asks Save page layout changes?, leave the overwrite box as it is. Click Yes.

   Do the same on each layout that needs the button.

   Copy link
7. 7Mark step 7 done

   Do the same for Contact and Lead.

   Use the layouts of Contact and Lead, and the Contact History and Lead History related lists. Use the action name from the table at the top of this chapter. On Lead, the action reads Verify Address.

   Copy link

8Verify a test address

Check the whole setup with one address on a test Account.

1. 1Mark step 1 done

   Open a test Account with a US billing address.

   In a sandbox with no accounts, open the Accounts tab and click New. Type an Account Name, for example Test Address. Type a real business address in Billing Address, for example the Salesforce Tower:

   Field	Value
   Billing Street	415 Mission St
   Billing City	San Francisco
   Billing State/Province	CA
   Billing Zip/Postal Code	94105
   Billing Country	USA

   Click Save.

   Copy link
2. 2Mark step 2 done

   Click Verify Addresses.

   It sits with the buttons at the top right of the record, or in the menu under the arrow at the end of the buttons. Address Verification sends each address on the record to Smarty. For the Salesforce Tower, a message reads Record Updated, Addresses Partially Verified.

   Copy link
3. 3Mark step 3 done

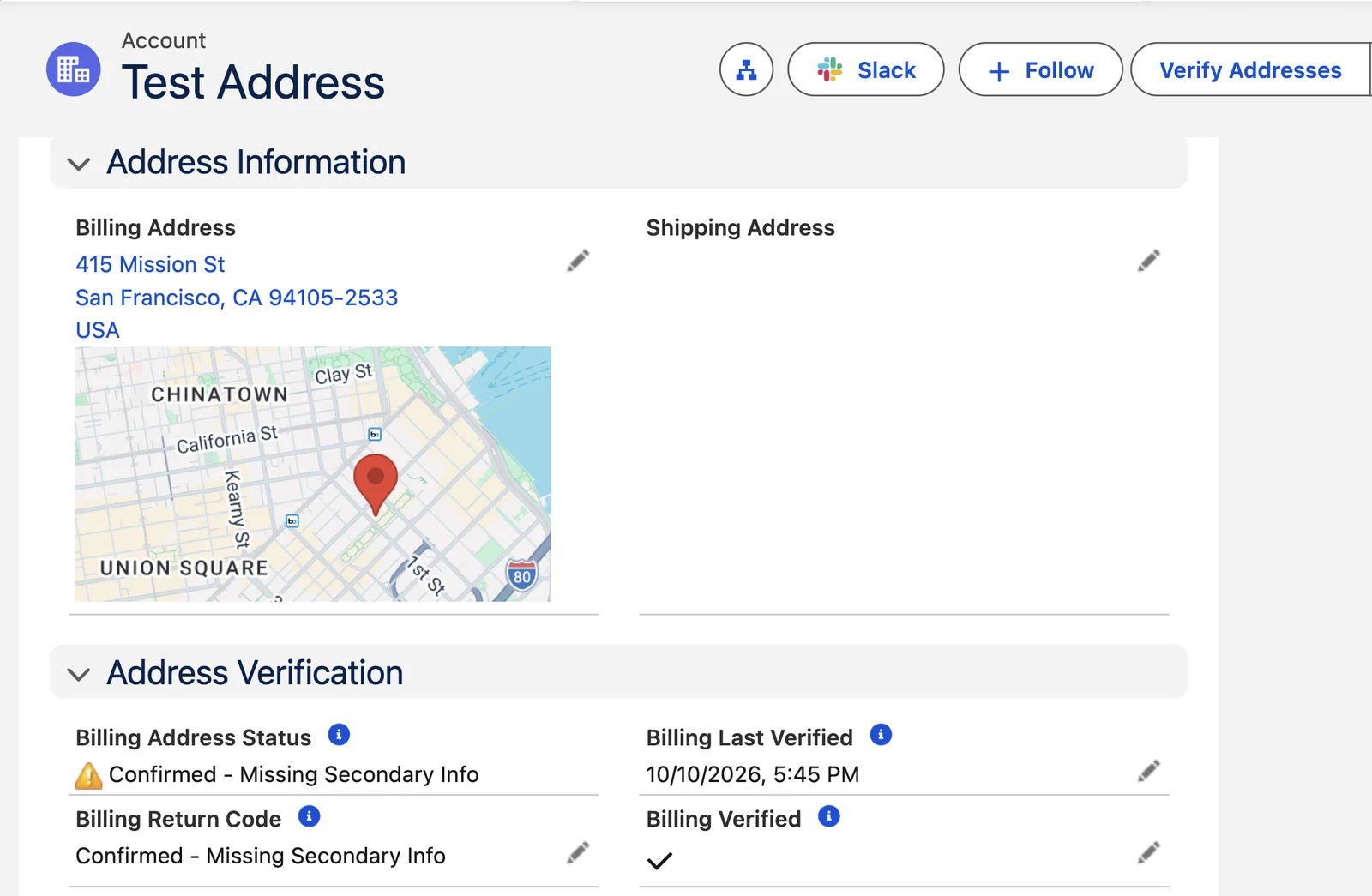

   Reload the page. Check the result.

   The address shows the form that Smarty returned. For the Salesforce Tower, the ZIP Code becomes 94105-2533.

   If you added the Address Verification fields to the layout, they show the result. The Salesforce Tower has many suites, so the status reads Confirmed - Missing Secondary Info. The address is valid, and Billing Verified is ticked. See Read the results.



   Copy link
4. 4Mark step 4 done

   Optional: try an address that does not exist.

   Click the pencil beside the address. Change the street to one that does not exist, for example 99999 Nowhere St. Click Save. The Return Code reads Changed, and the status reads Not Yet Verified.

   Click Verify Addresses again. The Return Code reads Bad or Blank Address. This check uses one more lookup.

   Copy link

9Add the Verify and Confirm button

Optional. Skip this chapter if the Verify Addresses action is enough.

Two components sit on the record page itself. They work for physical addresses only.

You need only one of them, because verifyAndConfirm holds both buttons. A third component, verifyAndConfirmEnrichment, is for use with TAF support only.

1. 1Mark step 1 done

   Open a test Account. Click the gear icon at the top right. Click Edit Page.

   The Lightning App Builder opens. Components sit in the left panel, the page sits in the middle, and the settings of the item you click sit in the right panel.

   Copy link
2. 2Mark step 2 done

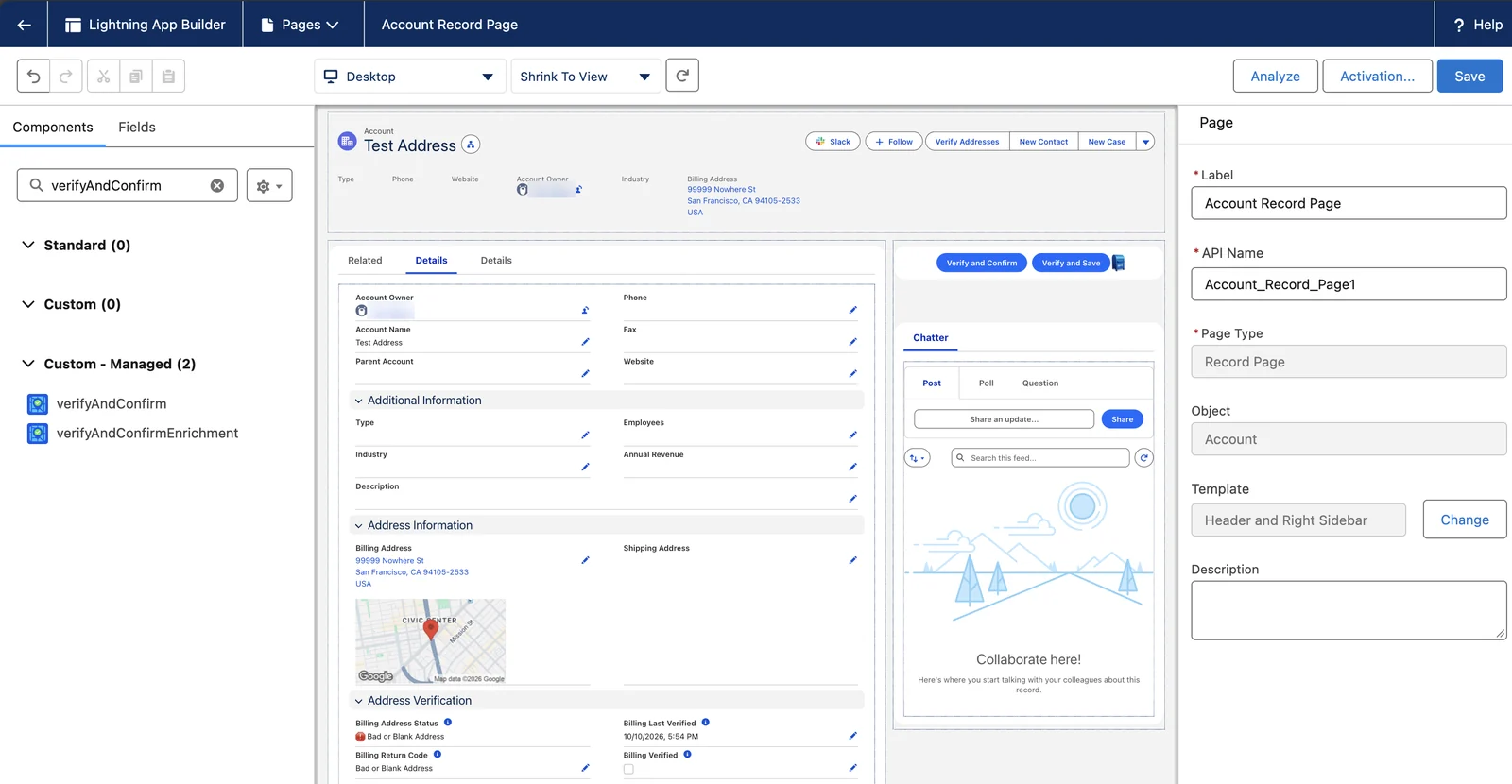

   Drag verifyAndConfirm onto the page.

   verifyAndConfirmCopy

   Type verifyAndConfirm in the search box of the left panel. Find it under Custom - Managed. Drop it at the top of a column, for example the right column.



   Copy link
3. 3Mark step 3 done

   Click the component. Set its two options.

   Option	What it does
   Hide Verify And Save	No shows the Verify and Save button too. Yes hides it, so users always see the changes first.
   Always Display Addresses	Yes shows the addresses on the component, also after the check.

   Copy link
4. 4Mark step 4 done

   Click Save. Activate the page, if Salesforce asks.

   Salesforce asks only when the page is not active yet. Click Activate. Click Assign as Org Default. Choose Desktop. Click Next. Salesforce shows a review of the assignment. Click Save.

   Copy link
5. 5Mark step 5 done

   Click Back. Click Verify and Confirm.

   Back is the arrow (←) at the top left of the Lightning App Builder. The record opens. Click Verify and Confirm. The component shows the result for each address, with each changed value in red.

   This check uses a lookup only for an address that is not verified yet. To see a change in red, first edit the test address. For example, change the street to 415 mission street and save. Then click Verify and Confirm.



   Copy link
6. 6Mark step 6 done

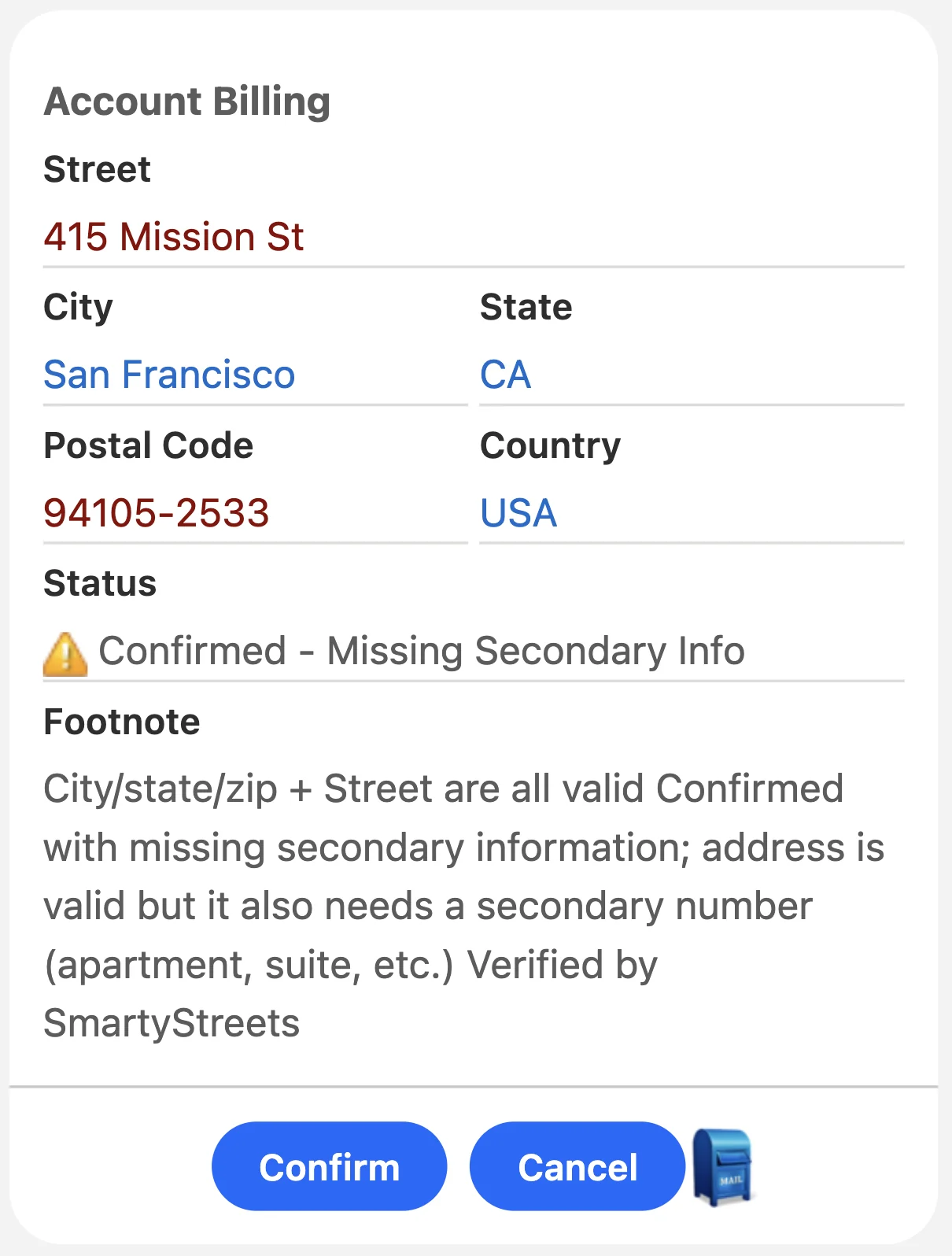

   Click Confirm.

   Address Verification saves the result to the record. With Cancel, nothing changes on the record, but the check still used a lookup.

   Copy link

10Keep the results when a Lead converts

Only for orgs that verify Lead addresses.

When a verified Lead converts, Salesforce makes an Account and a Contact. Map the Address Verification fields of the Lead, so the new records arrive verified and do not need a second lookup.

1. 1Mark step 1 done

   Open Lead in Object Manager. Click Fields & Relationships.

   Open Setup. Click Object Manager. Click Lead. Click Fields & Relationships.

   Copy link
2. 2Mark step 2 done

   Click Map Lead Fields.

   The page Custom Fields opens. It has a tab for each object: Account, Contact and Opportunity. Each tab lists the custom fields of the Lead. Beside each one, a list offers the fields of that object.

   Copy link
3. 3Mark step 3 done

   Map the Address Verification fields. Then click Save.

   Map as many as you can. Map at least these three Lead fields. For example, on the Contact tab:

   Lead field	Contact field
   Address Verified	Mailing Verified
   Address Return Code	Mailing Return Code
   Address Last Verified	Mailing Last Verified

   To keep the result on the Account too, map the same Lead fields to the Billing fields on the Account tab.

   Copy link

11Verify addresses on a custom object

Only for orgs that keep addresses on a custom object.

Address Verification works on custom objects too. You make the result fields on the object, add an entry on the Data Mapping tab and make a Verify action. Then a Flow marks a changed address, in the next chapter.

Do this in a sandbox first. The examples use an object named Location.

1. 1Mark step 1 done

   Make the required fields on your object.

   Open Setup. Click Object Manager. Click your object. Click Fields & Relationships. For each field in the table, click New. Pick the type. Click Next.

   Type the label. For a text field, type the length. For a number, type the length and the decimal places, for example 12 and 6 for Number(12, 6). Click Next.

   Keep the field visible for the profiles that work with addresses. Click Next. Click Save.

   Example label	Type	What it holds
   Street	Text(255)	Most objects already have it.
   City	Text(128)	Most objects already have it.
   State	Text(20)	Most objects already have it.
   Zip Code	Text(20)	Most objects already have it.
   Country	Text(64)	Most objects already have it.
   Address Verified	Checkbox	Ticked when the address is verified. Verify skips an address whose box is ticked.
   Address Last Verified	Date/Time	The date and time of the last check.
   Address Return Code	Text(40)	The result of the check. See Read the results.
   Footnotes	Long Text Area	Notes about the check.

   If the object holds more than one address, make a set of fields for each one. Start each label with the name of the address, for example Site Street and Site Address Verified.

   Copy link
2. 2Mark step 2 done

   Optional: make fields for more data.

   Address Verification can fill many more fields, for example County, Latitude and Time Zone. See Optional fields for an address below. Make only the ones you need.

   A Lookup field has one more page, Related To. For Verified By, pick User there.

   Copy link
3. 3Mark step 3 done

   On the Data Mapping tab, click Add Supported Object, if your object is new to Address Verification.

   Open the Address Verification setup page. Click the Data Mapping tab. Click Add Supported Object. A window named New Supported Object opens.

   Field	Value
   Label	The name of your object, for example Location
   Active	On
   API Name	The API name of your object, for example Location__c
   Verify Addresses, Verify Phones, Verify Emails	Off. These turn on checks in the background, and each check uses a lookup.

   Leave the other fields as they are. Click Save. Reload the page. Your object now shows in the Select an Object list of a new entry, and on the Automation tab.

   Skip this step if your object already shows in the Select an Object list.

   Copy link
4. 4Mark step 4 done

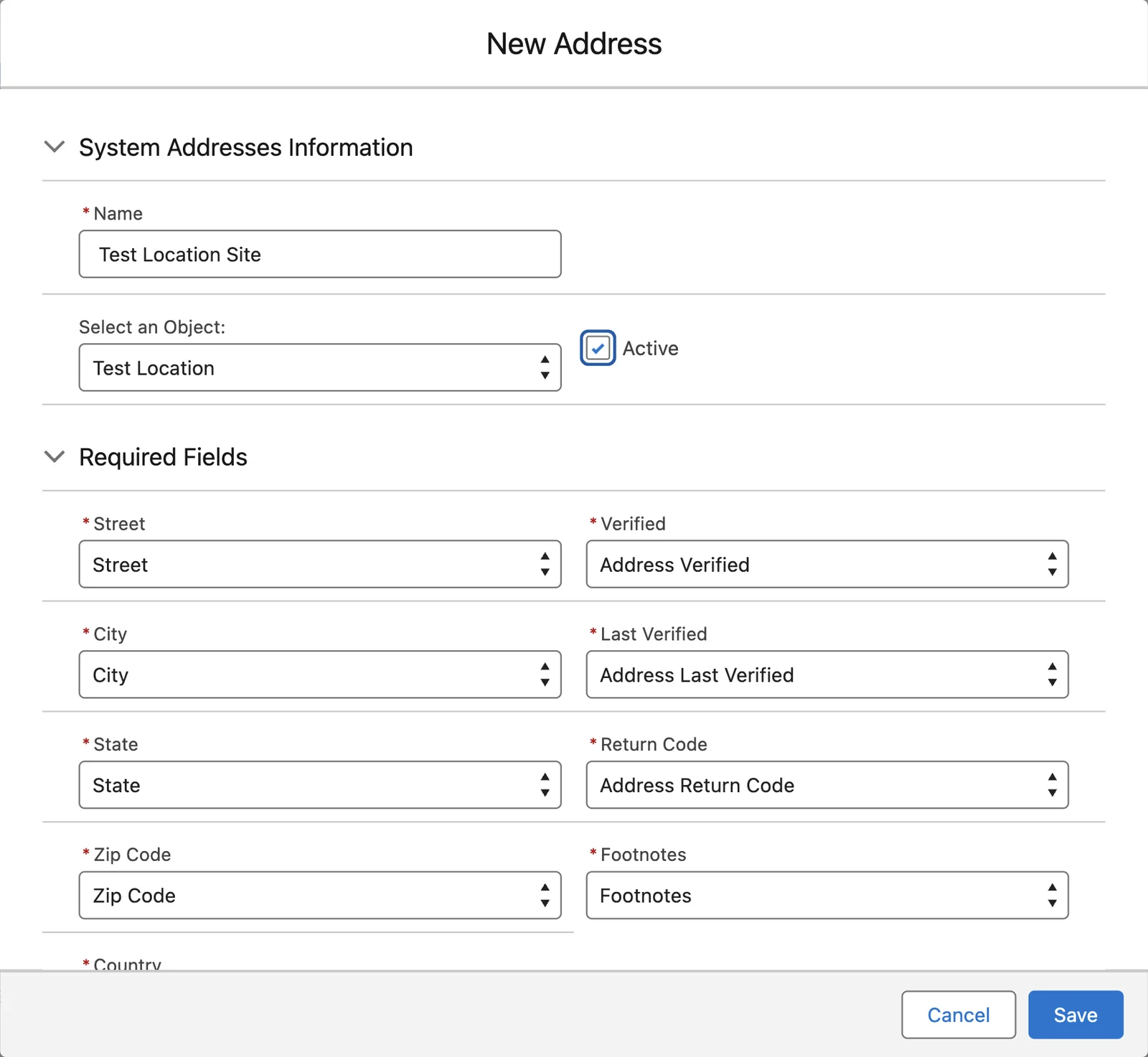

   Click New Address. Fill in the entry. Then click Save.

   Type a Name that starts with the object name, for example Location Site. Select your object. Tick Active.

   Under Required Fields, pick the fields from step 1: Street, City, State, Zip Code, Country, Verified, Last Verified, Return Code and Footnotes. Map the optional fields you made in step 2.

   Some optional fields have short names in the entry, for example DST for Daylight Savings. The options at the bottom work as for the standard addresses. See Address options.



   Copy link
5. 5Mark step 5 done

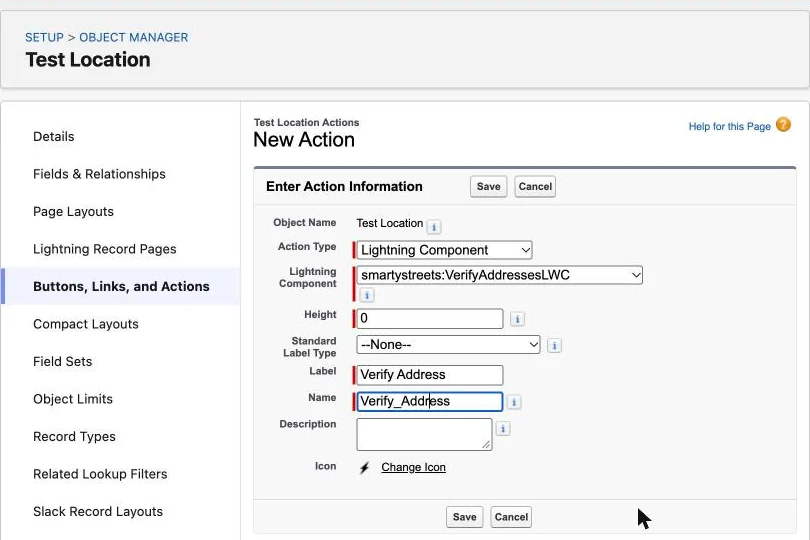

   Make a Verify action for your object.

   Go back to your object in Object Manager. Click Buttons, Links, and Actions. Click New Action. Fill in the form:

   Field	Value
   Action Type	Lightning Component
   Lightning Component	smartystreets:VerifyAddressesLWC
   Height	0
   Label	Verify Address

   Click Save.



   Copy link
6. 6Mark step 6 done

   Add Verify Address to the page layout.

   Click Page Layouts. Open the layout your users work with. In the palette, click Mobile & Lightning Actions. Drag Verify Address into the Salesforce Mobile and Lightning Experience Actions section. Click Save.

   If the section asks you to override the predefined actions, click the link first. Do the same on each layout that needs the button.

   Copy link
7. 7Mark step 7 done

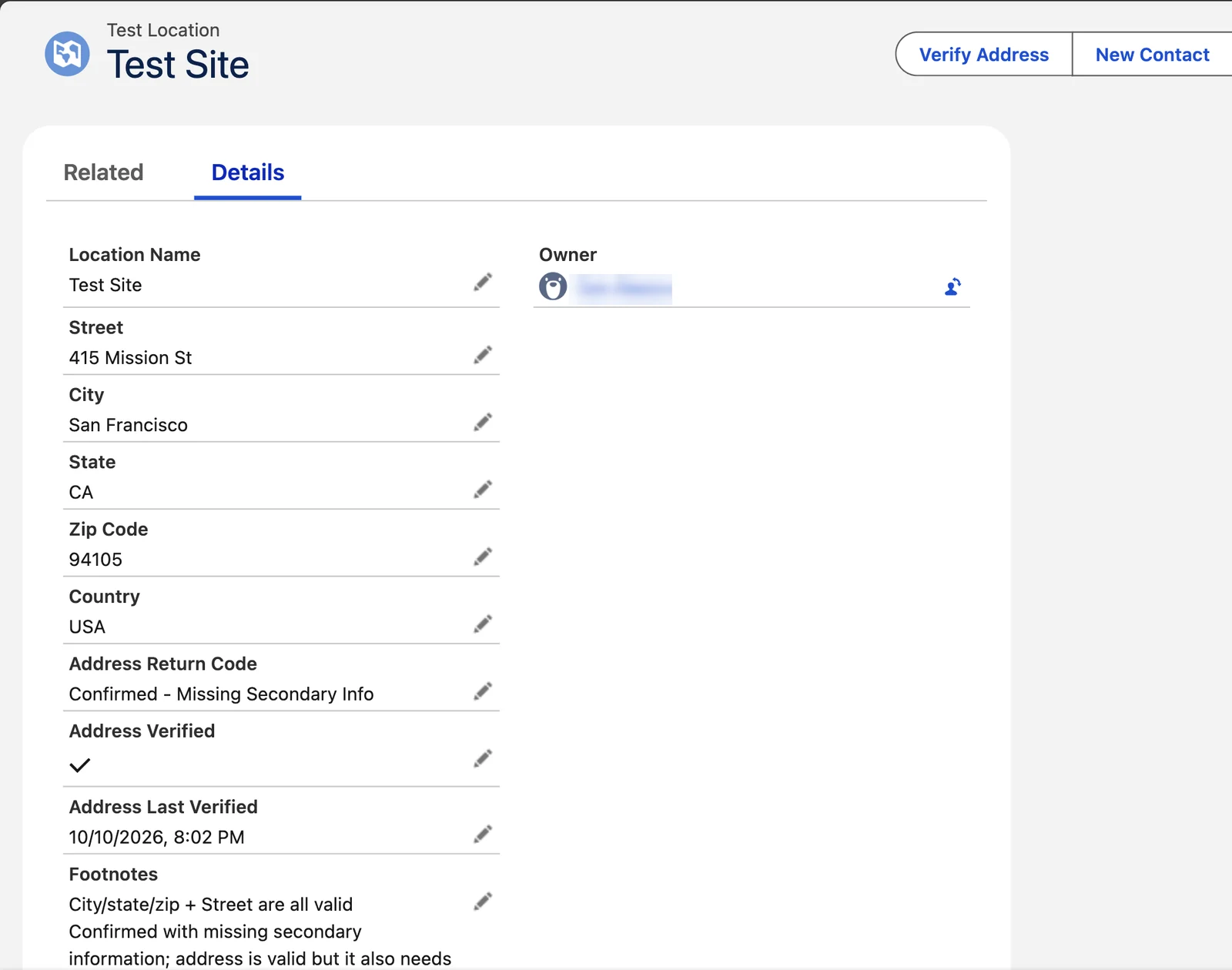

   Open a record with a US address. Click Verify Address.

   A small Verify Address window opens for about three seconds, with a Cancel button. Then it closes. A message reads Record Updated, with the result, for example Addresses Partially Verified. The page then shows the result. The check uses one lookup.

   If you mapped Zip Plus 4, the four extra digits of the ZIP Code go there, and Zip Code keeps five digits.



   Copy link

The Verify and Confirm component and the Verify and Save button work on a custom object too. See Add the Verify and Confirm button.

To see who changed an address, turn on field history for each address field: Street, City, State, Zip Code and Country. See Track address changes.

Optional fields for an address

Make the ones you need, with the type shown. Then map each one in the address entry.

Fields for international addresses

Make these fields only if you verify addresses outside the US. See International addresses.

Formula fields that show the result

These formula fields show the data in a form that is easy to read. Make each one as a Formula field with the return type Text. Paste the formula.

Replace each word in capitals with the API name of your field, for example RETURNCODE with Address_Return_Code__c. Click Check Syntax. Then save the field.

Address Status shows the result with an icon. Replace RETURNCODE with your Return Code field.

If(RETURNCODE = "Confirmed", IMAGE("/img/msg_icons/confirm16.png", "Confirmed", 16, 16) & " Confirmed",
If(RETURNCODE = "Partial", IMAGE("/img/msg_icons/warning16.png", "Confirmed - Partially", 16, 16) & " Confirmed - Partially",
If(left(RETURNCODE,9) = "Confirmed", IMAGE("/img/msg_icons/warning16.png", RETURNCODE, 16, 16) & " " & RETURNCODE,
If(RETURNCODE = "Bad or Blank Address", IMAGE("/img/msg_icons/error16.png", "Blank Address", 16, 16) & " Bad or Blank Address",
If(RETURNCODE = "Not Submitted", IMAGE("/img/msg_icons/error16.png", "Not Submitted", 16, 16) & " Not Submitted",
If(RETURNCODE = "Not Confirmed", IMAGE("/img/msg_icons/error16.png", "Not Confirmed", 16, 16) & " Not Confirmed",
IMAGE("/img/msg_icons/info16.png", "Not Yet Verified", 16, 16) & " Not Yet Verified"))))))

Geolocation Link shows the latitude and longitude with a link to Google Maps. Replace LAT with your Latitude field. Replace LONG with your Longitude field.

if ( not ( isBlank ( LAT ) ), text( LAT )+" "+text( LONG ) + " " +
HYPERLINK("https://www.google.com/maps/place/"+text( LAT )+","+text( LONG ), "map", "_blank"), "" )

Record Type Description shows the word for the code in Record Type. Replace RECORDTYPE with your Record Type field.

If(RECORDTYPE = "F", "Firm",
If(RECORDTYPE = "G", "General Delivery",
If(RECORDTYPE = "H", "High-Rise",
If(RECORDTYPE = "P", "P.O. Box",
If(RECORDTYPE = "R", "Rural Route",
If(RECORDTYPE = "S", "Street", "" ) ) ) ) ) )

Barcode Image shows the barcode as a picture. Replace BARCODE with your Barcode field. The picture comes from barcodesinc.com, an outside web site.

if ( not ( isblank ( BARCODE ) ), IMAGE("https://www.barcodesinc.com/generator/image.php?code=" + BARCODE +
"&style=196&type=C128B&width=206&height=50&xres=1&font=3", "Address Barcode" ), "" )

Current Time shows the time at the address now, for US addresses only. Replace HOUROFFSET with your UTC Offset field. Replace DAYLIGHTSAVINGS with your Daylight Savings field.

IF(ISBLANK(HOUROFFSET), "",
  IF (AND( DAYLIGHTSAVINGS,
        TODAY() >=
        CASE(MOD(DATE(YEAR(TODAY()),3,8) - DATE(1900,1,7),7),
        0, DATE(YEAR(TODAY()),3,8),
        1, DATE(YEAR(TODAY()),3,8)+6,
        2, DATE(YEAR(TODAY()),3,8)+5,
        3, DATE(YEAR(TODAY()),3,8)+4,
        4, DATE(YEAR(TODAY()),3,8)+3,
        5, DATE(YEAR(TODAY()),3,8)+2,
        DATE(YEAR(TODAY()),3,8)+1),
        TODAY() <
        CASE(MOD(DATE(YEAR(TODAY()),11,1) - DATE(1900,1,7),7),
        0, DATE(YEAR(TODAY()),11,1),
        1, DATE(YEAR(TODAY()),11,1)+6,
        2, DATE(YEAR(TODAY()),11,1)+5,
        3, DATE(YEAR(TODAY()),11,1)+4,
        4, DATE(YEAR(TODAY()),11,1)+3,
        5, DATE(YEAR(TODAY()),11,1)+2,
        DATE(YEAR(TODAY()),11,1)+1)),
    /* CALCULATE FOR IT BEING CURRENTLY DST */
    MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 6, 2 ) & "/" &
    MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 9, 2 ) & "/" &
    LEFT( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 4 ) & " " &
    TEXT( IF( OR(
          VALUE( MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 12, 2 ) ) = 0,
          VALUE( MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 12, 2 ) ) = 12), 12,
            VALUE( MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 12, 2 ) ) -
            IF( VALUE( MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 12, 2 ) ) < 12, 0, 12 )))
    &":"& MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 15, 2 ) &" "&
    IF( VALUE( MID( TEXT( NOW()+ (HOUROFFSET +1) /24 ), 12, 2 ) ) < 12, "AM", "PM"
    ),
    /* CALCULATE FOR IT NOT BEING CURRENTLY DST */
    MID( TEXT( NOW()+ HOUROFFSET /24 ), 6, 2 ) & "/" &
    MID( TEXT( NOW()+ HOUROFFSET /24 ), 9, 2 ) & "/" &
    LEFT( TEXT( NOW()+ HOUROFFSET /24 ), 4 ) & " " &
    TEXT( IF( OR(
          VALUE( MID( TEXT( NOW()+ HOUROFFSET /24 ), 12, 2 ) ) = 0,
          VALUE( MID( TEXT( NOW()+ HOUROFFSET /24 ), 12, 2 ) ) = 12), 12,
            VALUE( MID( TEXT( NOW()+ HOUROFFSET /24 ), 12, 2 ) ) -
            IF( VALUE( MID( TEXT( NOW()+ HOUROFFSET /24 ), 12, 2 ) ) < 12, 0, 12 )
      )
    )
    &":"& MID( TEXT( NOW()+ HOUROFFSET /24 ), 15, 2 ) &" "&
    IF( VALUE( MID( TEXT( NOW()+ HOUROFFSET /24 ), 12, 2 ) ) < 12, "AM", "PM"
        )))

Verified By shows the user who verified the address, with the date and time. Give it a Field Name other than the one of your Verified By field, for example Verified_By_Info. Two fields cannot share a field name. The label can be the same. Replace VERIFIEDUSERID with your Verified By field. Replace VERIFIEDUSERNAME with the name of that user, for example Verified_By__r.FirstName & " " & Verified_By__r.LastName. Replace LASTVERIFIED with your Last Verified field.

The formula shows the time 5 hours behind UTC. For another time zone, change each 5/24.

if ( not ( isblank ( VERIFIEDUSERID ) ),
HYPERLINK("/" & VERIFIEDUSERID, VERIFIEDUSERNAME, "_Top") &
IF( ISBLANK( LASTVERIFIED ), "", ", " &
TEXT(MONTH(DATEVALUE(LASTVERIFIED)))+"/" +TEXT(DAY(DATEVALUE(LASTVERIFIED)))+"/"
+TEXT(YEAR(DATEVALUE(LASTVERIFIED))) & " " &
IF(OR(VALUE( MID( TEXT( LASTVERIFIED - (5/24) ), 12, 2 ) ) = 0,
VALUE( MID( TEXT( LASTVERIFIED - (5/24) ), 12, 2 ) ) = 12), "12",
TEXT( VALUE( MID( TEXT( LASTVERIFIED - (5/24) ), 12, 2 ) ) -
IF(VALUE( MID( TEXT( LASTVERIFIED - (5/24) ), 12, 2 ) ) < 12, 0,12))) & ":" &
MID( TEXT( LASTVERIFIED - (5/24) ), 15, 2 ) & " " &
IF( VALUE( MID( TEXT( LASTVERIFIED - (5/24) ), 12, 2 ) ) < 12, "AM","PM")), "")

12Mark changed addresses on a custom object

Only for addresses on a custom object. Accounts, Contacts and Leads get this from the app.

Verify skips an address whose Verified box is ticked, so it does not use a lookup twice. On a custom object, nothing unticks the box when the address changes. A record-triggered Flow does it.

On Accounts, Contacts and Leads, the triggers of Address Verification untick the box. They run for each object whose Active box is ticked on the Automation tab. A new install has Active ticked for all three.

This chapter builds the Flow for the address from Verify addresses on a custom object. The examples use the field labels from that chapter.

1. 1Mark step 1 done

   Open Setup. Open Flows. Click New Flow.

   In the Quick Find box, type Flows. Click Flows. Click New Flow. Flow Builder opens in a new browser tab.

   Copy link
2. 2Mark step 2 done

   Click Record-Triggered Flow.

   A window named New Automation opens. Under Frequently Used, click Record-Triggered Flow. The Flow opens at once.

   Copy link
3. 3Mark step 3 done

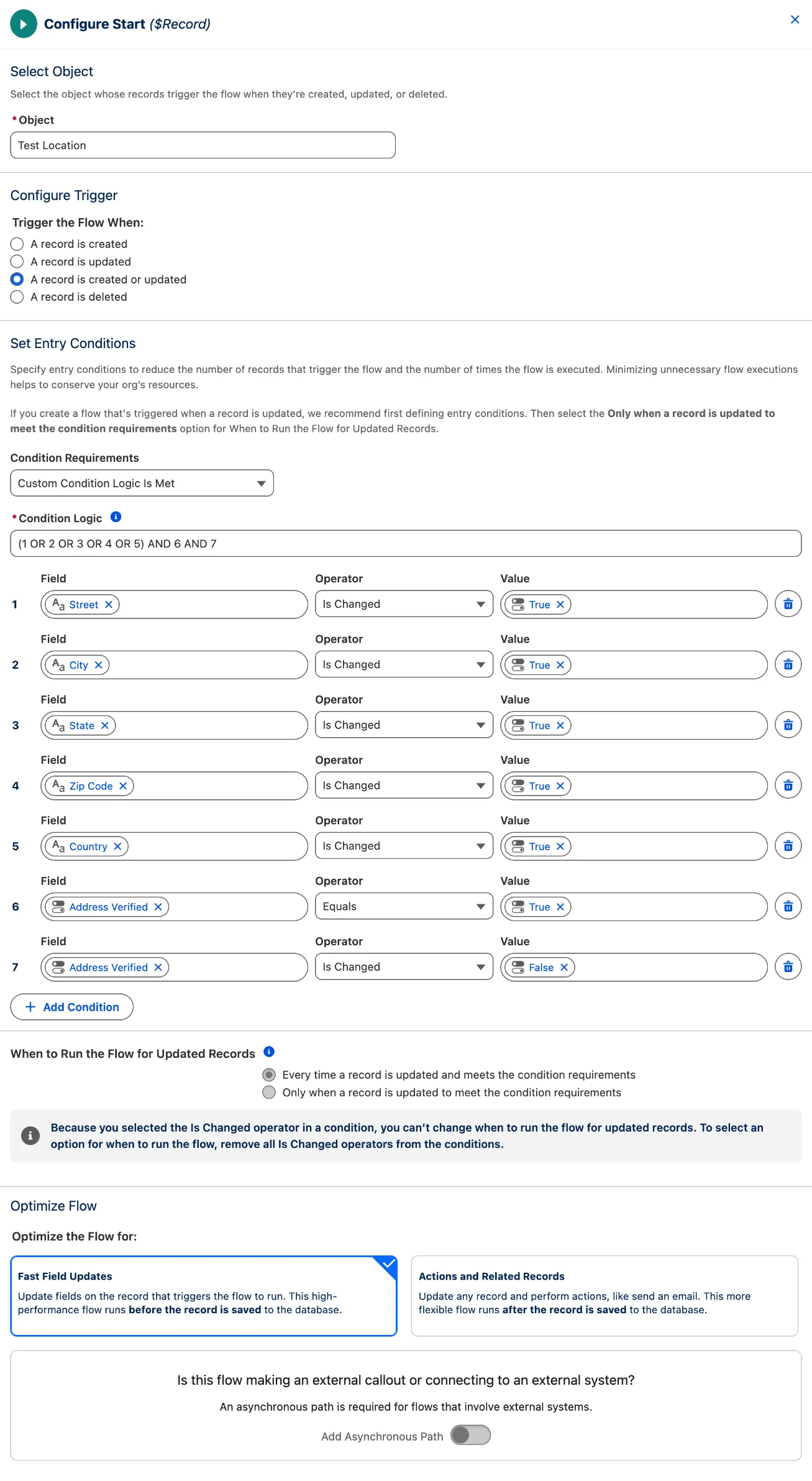

   Set the object and the trigger.

   A panel named Configure Start opens. Trigger the Flow When starts at A record is created, so change it.

   Setting	Value
   Object	Your object, for example Location
   Trigger the Flow When	A record is created or updated
   Condition Requirements	Custom Condition Logic Is Met

   Copy link
4. 4Mark step 4 done

   Add the seven conditions.

   Click Add Condition for each new row. For True or False, pick the value under Global Constants.

   Row	Field	Operator	Value
   1	Street	Is Changed	True
   2	City	Is Changed	True
   3	State	Is Changed	True
   4	Zip Code	Is Changed	True
   5	Country	Is Changed	True
   6	Address Verified	Equals	True
   7	Address Verified	Is Changed	False

   Row 7 matters. When Smarty corrects an address, Address Verification writes the new street and ticks Address Verified in one save. Without row 7, the Flow unticks the box at once, and Verify fails.

   Copy link
5. 5Mark step 5 done

   Type the condition logic.

   The Condition Logic box sits above the conditions. It starts with 1. Replace it with:

   (1 OR 2 OR 3 OR 4 OR 5) AND 6 AND 7Copy

   The Flow goes on when any address field changes on a verified record, and the same save does not change Address Verified.

   Copy link
6. 6Mark step 6 done

   Check When to Run. Pick Fast Field Updates.

   Under When to Run the Flow for Updated Records, Salesforce sets Every time a record is updated and meets the condition requirements. It greys the choice out, because of the Is Changed conditions.

   Under Optimize the Flow for, click the Fast Field Updates card. The other card is the default. The Flow does not work without Fast Field Updates.

   Leave Add Asynchronous Path off, at the bottom of the panel.



   Copy link
7. 7Mark step 7 done

   Click + under the start. Under Shortcuts, pick Update Triggering Record.

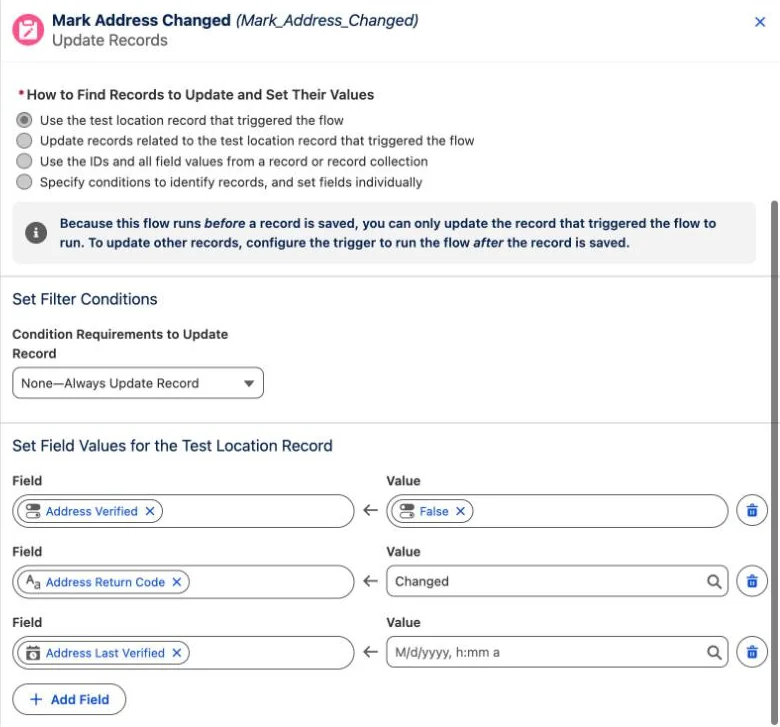

   A panel named Update Records opens. Type a Label, for example Mark Address Changed. Keep the preset choices for the record and the filter.

   Copy link
8. 8Mark step 8 done

   Set two field values.

   Click Add Field for each row. For Changed, type the word in the Value box.

   Field	Value
   Address Verified	False
   Address Return Code	Changed

   Optional: add Address Last Verified with no value, to clear the date. Some orgs keep the date of the last check.



   Copy link
9. 9Mark step 9 done

   Click Save. Name the Flow. Click Activate.

   Type a Flow Label, for example Location Address Changed. Click Save. Click Activate.

   Copy link
10. 10Mark step 10 done

    Test the Flow on a verified record.

    Open a record whose address is verified. Change the street. Save. Address Verified is no longer ticked, and the Return Code reads Changed.

    Click Verify Address to check the new address. It uses one lookup. Address Verified is ticked again, with the new result.

    Copy link

An Apex trigger can do the same job. It needs a sandbox and test code. For help with it, open a case.

13Check email addresses and phone numbers

Only with the email or phone add-on from TAF.

Address Verification checks phone numbers and email addresses through a TAF service. To buy the add-on, email [email protected].

Each phone or email field needs its own result fields and its own entry on the Data Mapping tab. No email entry exists at first. A Contact Mobile entry exists, but it is not active, and it maps only the phone field.

1. 1Mark step 1 done

   Make the result fields for each phone number.

   Make them on the object of the phone field, as in step 1 of Verify addresses on a custom object. The labels are examples for a phone field named Mobile.

   Example label	Type	What it holds
   Mobile	Phone	The phone number. Most objects already have it.
   Mobile Verified	Checkbox	Ticked when the number is verified. Verify skips a number whose box is ticked.
   Mobile Country	Text(40)	The two-letter code of the country of the number, for example US. When it is empty, Address Verification uses US.
   Mobile Last Verified	Date/Time	The date and time of the last check.
   Mobile Return Code	Text(40)	The result of the check. See Return codes for phone numbers.
   Mobile API Response	Long Text Area	The whole answer from the service. It is not for display.

   Make these fields for the Contact Mobile entry too. Contact has no result fields for phones or emails at first.

   Copy link
2. 2Mark step 2 done

   Make the result fields for each email address.

   Example label	Type	What it holds
   Email	Email	The email address. Most objects already have it.
   Email Verified	Checkbox	Ticked when the address is verified. Verify skips an address whose box is ticked.
   Email Last Verified	Date/Time	The date and time of the last check.
   Email Return Code	Text(40)	The result of the check. See Return codes for email addresses.

   For more data, see Optional fields for phone and email below.

   Copy link
3. 3Mark step 3 done

   On the Data Mapping tab, click New Phone. Fill in the entry. Then click Save.

   To use the default entry, click Edit beside Contact Mobile instead.

   Type a Name that starts with the object name. Select the object. Tick Active. Pick the fields for Phone, Verified, Country, Return Code, Last Verification and Phone Response. Map the optional fields you made.

   The optional fields sit under Response Fields. With Clear all verified fields after Phone change ticked, a new number clears every mapped field. Without it, a new number unticks Verified and clears Return Code.



   Copy link
4. 4Mark step 4 done

   Click New Email. Fill in the entry. Then click Save.

   Type a Name that starts with the object name. Select the object. Tick Active. Pick the fields for Email, Verified, Last Verification and Return Code. Map the optional fields you made.

   The Return Code list offers every text field of the object. Pick your Return Code field with care.

   With Clear all verified fields after Email change ticked, a new email address clears every mapped field. Without it, only Verified and Return Code change.



   Copy link
5. 5Mark step 5 done

   Add the Verify action for phones or emails to the page layout.

   Add it as in step 4 of Add the Verify button. In the palette, each label shows twice: as a Quick Action and as a Custom Button for Classic. Point at each one to see its name. Use the Quick Action. Its name starts with the object name and a dot, for example Lead.smartystreets__VerifyEmails. The table leaves out that start.

   Object	Action label	Quick Action name
   Contact	Verify Phones	smartystreets__Verify_Phone_Lightning_Contact
   Contact	Verify Emails	smartystreets__Verify_Emails
   Lead	Verify Phones	smartystreets__Verify_Phone_Lightning_Lead
   Lead	Verify Emails	smartystreets__VerifyEmails

   Do not use the Custom Buttons for Classic, or the actions marked Deprecated.

   On a custom object, make a new action as in step 5 of Verify addresses on a custom object. Use the component smartystreets:VerifyPhone for phone numbers, or smartystreets:VerifyEmail for email addresses.

   Copy link
6. 6Mark step 6 done

   Open a record with a phone number or an email address. Click the Verify action.

   A message reads Record Updated, with Phone Verified. or Email Verified. The message shows for every result, also a bad one.

   Reload the page. The Return Code field shows the result. The Verified box stays empty when the result is not valid. Each check uses one lookup from your add-on.

   See Return codes for phone numbers and Return codes for email addresses.

   Copy link
7. 7Mark step 7 done

   On a custom object, add a Flow that marks a changed number or email.

   Build it as in Mark changed addresses on a custom object, with two conditions. Row 1: the phone or email field, Is Changed, True. Row 2: its Verified field, Equals, True. Use the logic 1 AND 2. Set the Verified field to False and the Return Code to Changed.

   On Contact and Lead, the triggers of Address Verification do this, when Active is ticked for the object on the Automation tab.

   Copy link

Optional fields for phone and email

Make the ones you need. Then map each one in the entry.

Formula fields for phone and email

Make them as in Formula fields that show the result. Replace RETURNCODE with your Return Code field.

Phone Status shows the result of a phone check with an icon.

If(RETURNCODE = "Valid", IMAGE("/img/msg_icons/confirm16.png", "Valid", 16, 16) & " Valid",
If(RETURNCODE = "Error", IMAGE("/img/msg_icons/error16.png", "Error", 16, 16) & " Error",
IMAGE("/img/msg_icons/info16.png", "Not Verified", 16, 16) & " Not Verified"))

Email Status shows the result of an email check with an icon.

If(RETURNCODE = "valid", IMAGE("/img/msg_icons/confirm16.png", "Valid", 16, 16) & " Valid",
If(RETURNCODE = "catch-all", IMAGE("/img/msg_icons/warning16.png", "Accept all (Unverifiable)", 16, 16) & " Accept all (Unverifiable)",
If(RETURNCODE = "do_not_mail", IMAGE("/img/msg_icons/warning16.png", "Do Not Mail", 16, 16) & " Do Not Mail",
If(RETURNCODE = "invalid", IMAGE("/img/msg_icons/error16.png", "Invalid", 16, 16) & " Invalid",
If(Or(RETURNCODE = "disposable", RETURNCODE = "spamtrap"), IMAGE("/img/msg_icons/error16.png", "Disposable", 16, 16) & " Disposable",
If(RETURNCODE = "unknown", IMAGE("/img/msg_icons/error16.png", "Unknown", 16, 16) & " Unknown",
IMAGE("/img/msg_icons/info16.png", "Not Verified", 16, 16) & " Not Verified"))))))

14Verify many records from a list

Optional. For a cleanup of records that are already in Salesforce.

A list button checks up to 200 selected records at once. Each address, email or phone number on each record uses its own lookup. One exception: when two address fields of a record hold the same address, for example Billing and Shipping, the check uses one lookup.

On Accounts, Contacts and Leads

The buttons come with the app. This part uses Lead. Account and Contact work the same way. The pictures show Contact.

1. 1Mark step 1 done

   Open Lead in Object Manager. Click List View Button Layout.

   Open Setup. Click Object Manager. Click Lead. Click List View Button Layout.

   Copy link
2. 2Mark step 2 done

   In the List View row, click the arrow at the end of the row. Click Edit.

   Copy link
3. 3Mark step 3 done

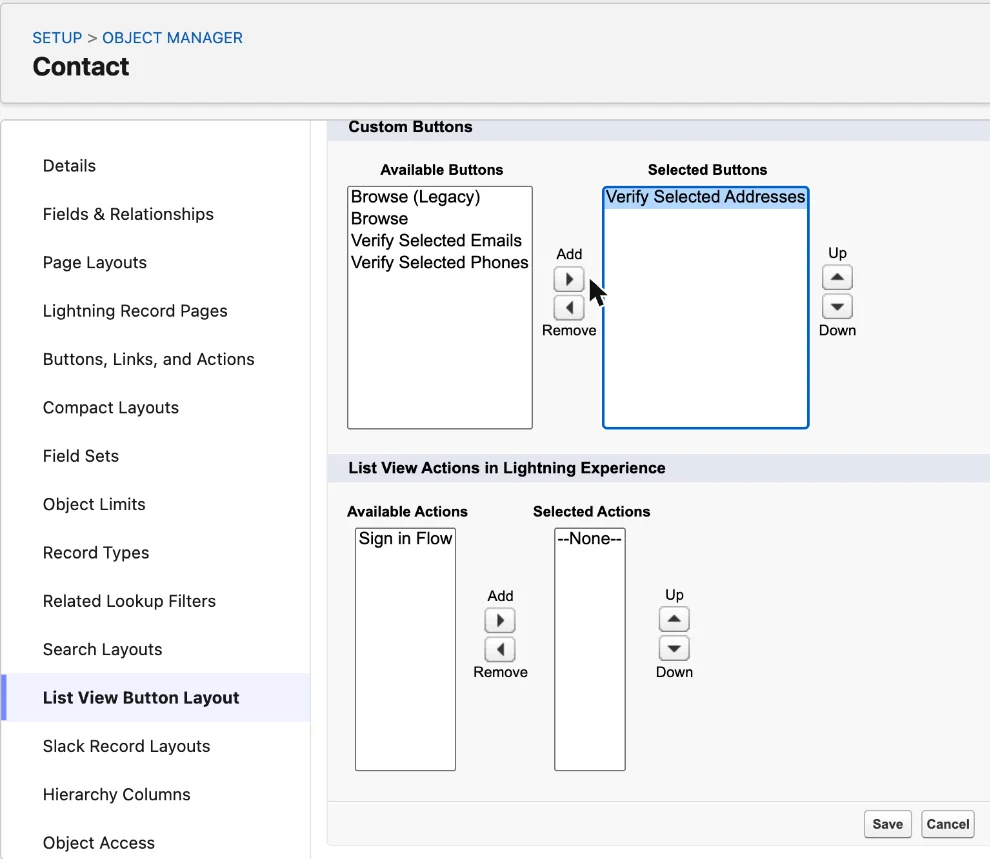

   Move Verify Selected Addresses to Selected Buttons. Then click Save.

   Under Custom Buttons, click Verify Selected Addresses in Available Buttons. Click the Add arrow. For emails and phone numbers, add Verify Selected Emails or Verify Selected Phones too.

   Lead also offers Verify All List Leads. It checks the Leads of the whole list view, not only the ticked ones. Each address uses a lookup, so add it only if you need it.



   Copy link
4. 4Mark step 4 done

   Open a Lead list view. Tick the records. Click Verify Selected Addresses.

   Tick up to 200 records. The button sits at the top right of the list, or in the menu under the arrow.

   A blank page with a spinner shows for a few seconds. Then the list shows again, with no message. Open a record to see the result.

   If Salesforce shows an error for long addresses, tick fewer records and try again.



   Copy link

On a custom object

A custom object needs a Visualforce page and a list button that opens it.

1. 1Mark step 1 done

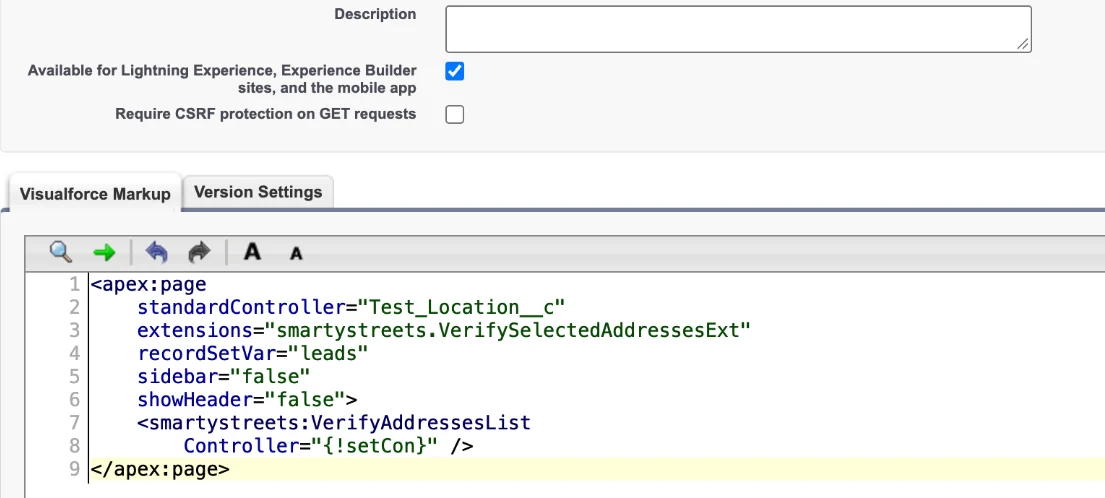

   Make a Visualforce page with the code below.

   Open Setup. In the Quick Find box, type Visualforce Pages. Click Visualforce Pages. Click New. Type a Label, for example Verify Location Addresses.

   Salesforce copies the Label into Name, with spaces. A name with spaces fails on Save. Type underscores in place of the spaces, for example Verify_Location_Addresses.

   Tick Available for Lightning Experience, Experience Builder sites, and the mobile app.

   Paste the code. The editor adds its own indents. They do no harm. Replace Object_Name__c with the API name of your object. Click Save.

   <apex:page
       standardController="Object_Name__c"
       extensions="smartystreets.VerifySelectedAddressesExt"
       recordSetVar="leads"
       sidebar="false"
       showHeader="false">
       <smartystreets:VerifyAddressesList
           Controller="{!setCon}" />
   </apex:page>

   Copy

   For email addresses or phone numbers, make one more page with one of these:

   <apex:page standardController="Object_Name__c" recordSetVar="recs" extensions="smartystreets.VerifySelectedAddressesExt" sidebar="false" setup="true">
       <smartystreets:BulkEmail Controller="{!setCon}" />
   </apex:page>

   Copy

   <apex:page standardController="Object_Name__c" recordSetVar="recs" extensions="smartystreets.VerifySelectedAddressesExt" sidebar="false" setup="true">
       <smartystreets:BulkPhone Controller="{!setCon}" />
   </apex:page>

   Copy

   TAF's older samples for these pages use another extension. It does not work in version 7.3, so use the code above.



   Copy link
2. 2Mark step 2 done

   Make a list button that opens the page.

   Open your object in Object Manager. Click Buttons, Links, and Actions. Click New Button or Link.

   Field	Value
   Label	Verify Selected Addresses
   Display Type	List Button
   Display Checkboxes (for Multi-Record Selection)	Ticked. The box shows after you pick List Button. It is ticked at first.
   Behavior	Display in existing window without sidebar or header
   Content Source	Visualforce Page
   Content	The page from step 1

   Click Save. For email addresses or phone numbers, make one more button for each page.

   Copy link
3. 3Mark step 3 done

   Add the button to the list view layout of the object.

   Click List View Button Layout. In the List View row, click the arrow at the end of the row. Click Edit. Move your button to Selected Buttons. Click Save.

   If your object has no List View Button Layout, see A custom object has no List View Button Layout.

   Copy link
4. 4Mark step 4 done

   Open a list view of your object. Tick the records. Click the button.

   The button sits in the row of buttons at the top of the list. As on Lead, a blank page shows for a few seconds, then the list. Open a record to see the result. Each address uses its own lookup.

   The email page shows Records Verified Successfuly with a Back button, then the list. The email and phone pages also check records that are verified already. Each one uses a lookup.

   Copy link

15Verify records in the background

Optional. For records that come in through imports, integrations or other automation.

Address Verification can check a record each time someone makes it, or changes its address. Accounts, Contacts and Leads use the triggers that come with the app. Each check uses a lookup.

1. 1Mark step 1 done

   On the setup page, click the Automation tab. Click Edit beside the object.

   Under Object Setup, the tab lists Account, Contact, Contact Point Address and Lead, and each object you added with Add Supported Object.

   Copy link
2. 2Mark step 2 done

   Tick Verify Addresses.

   Verify Addresses sits in the right column, above Verify Phones and Verify Emails. For emails and phone numbers, tick Verify Emails or Verify Phones too. Keep Active ticked. For the other options, see The options of an object below.



   Copy link
3. 3Mark step 3 done

   Click Save.

   The window closes. No message shows.

   Copy link
4. 4Mark step 4 done

   Test with one record.

   Change the street of a test record. Save. Wait a few seconds. Reload the page. The fields show the result of the check.

   Copy link

The options of an object

Show background checks on the record page

The Background Verification Tracker sits on the record page. For about 5 seconds after a save, it looks for a background check. When it finds one, it refreshes the page and shows a message, for example Addresses Verified. It does not catch every check. It works for physical addresses only.

1. 1Mark step 1 done

   Open a record of the object. Click the gear icon. Click Edit Page.

   Copy link
2. 2Mark step 2 done

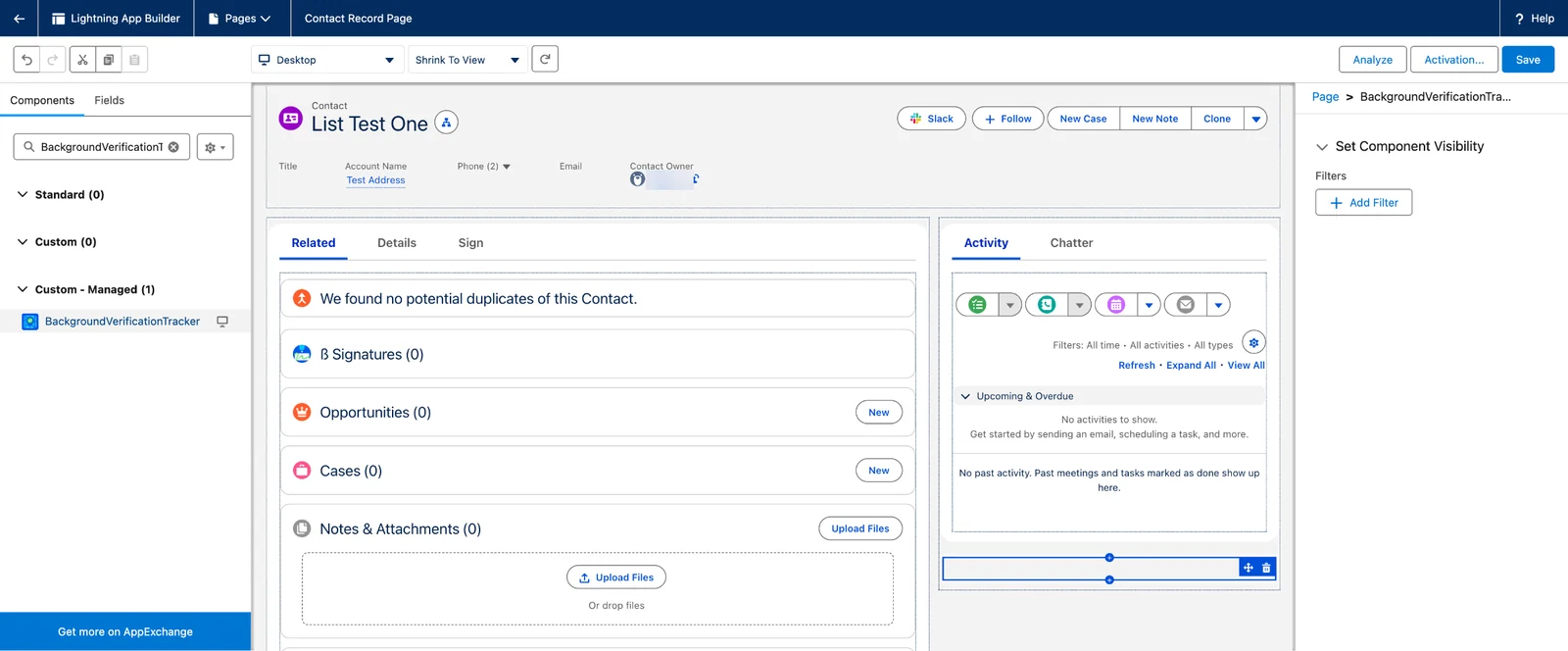

   Add BackgroundVerificationTracker at the bottom of a column.

   BackgroundVerificationTrackerCopy

   Type the name in the search box of the Components list. Find it under Custom - Managed. Drag it to the bottom of a column. If the drag does not work, click the + at the bottom of the column. Then click the component.

   You cannot see it on the page most of the time. It shows as an empty box in the builder.



   Copy link
3. 3Mark step 3 done

   Click Save. Activate the page, if Salesforce asks.

   A message reads Changes saved.

   Activate it as in step 4 of Add the Verify and Confirm button.

   Copy link
4. 4Mark step 4 done

   Click the back arrow at the top left.

   Copy link

Reuse earlier checks of the same address

Check for Existing Addresses looks for a verified record with the same address in the same object, before it calls Smarty. A match saves a lookup. The search makes each check a little slower, so TAF advises it only for a small Smarty plan.

• It looks only at records of the same object. A new Lead does not find a verified Account.
• Above about 200,000 records in the object, it can fail. Open a case before you turn it on.
• A reused result looks the same as a new check. Nothing on the record shows which one it was.

1. 1Mark step 1 done

   Map a Clean Street field in each address entry.

   On the Data Mapping tab, click Edit beside the entry. Pick a field for Clean Street. If the object has no such field, make a Text(255) field first.

   Tick Clean Address Prior to Verification in the entry too. Without it, the checks leave Clean Street empty. Click Save.

   Address Verification matches the clean street, the city and the state.

   Copy link
2. 2Mark step 2 done

   On the Automation tab, edit the object. Tick Active, Verify Addresses and Check for Existing Addresses. Click Save.

   Copy link
3. 3Mark step 3 done

   Optional: fill Clean Street on older records.

   Without this step, the match works only for records saved from now on. To fill older records, verify them again, which uses lookups. Or a developer can run Apex in the Developer Console, for example this sample, which cleans 100 Leads:

   List<Lead> leadlist = [select Id, Street, CleanStreet__c
                          from Lead
                          where Street != null
                          and CleanStreet__c = null
                          and isConverted = false
                          limit 100];
   for(Lead l:leadlist) {
       l.CleanStreet__c = SmartyStreets.Clean.AddressCleanse(l.Street);
   }
   update leadlist;

   Copy

   Replace CleanStreet__c with the API name of your Clean Street field. For help, open a case.

   Copy link

Background checks on a custom object

A custom object needs its own Apex trigger. TAF's sample is the file verifyTrigger.java in the trigger folder of the Address Verification repository on GitHub. Replace each Object_Name__c with the API name of your object:

trigger verifyTrigger on Object_Name__c (before insert, before update, after insert, after update) {
    new smartystreets.AutoVerificationServices().HandleAutoVerify('Object_Name__c'); // for PHYSICAL ADDRESSES
    //new smartystreets.AutoVerificationServicesEmails().HandleAutoVerify('Object_Name__c'); // for EMAIL ADDRESSES
    //new smartystreets.AutoVerificationServicesPhone().HandleAutoVerify('Object_Name__c'); // for PHONE NUMBERS
}

The line that ends in PHYSICAL ADDRESSES checks addresses. To check email addresses or phone numbers too, remove the // at the start of the line that ends in EMAIL ADDRESSES or PHONE NUMBERS.

The same folder holds verifyTriggerTests.java, a sample test class. Build the trigger in a sandbox and deploy it to production, with test code if no test class covers the object. Only an admin who writes Apex should do this. Then tick Active and Verify Addresses for the object on the Automation tab.

Without code, a record-triggered Flow does the same job. See Verify records with a Flow.

Turn off all background checks

On the Options tab, tick Turn OFF All Triggers. Then click Save Settings. This stops the triggers on Account, Contact and Lead. Flows still run.

Use it to find a problem, or before a large data load. To keep checks without the triggers, use Flows: Mark changed addresses on a custom object and Verify records with a Flow.

Keep a log of each check

On the Options tab, tick Log Responses. Then click Save Settings. Address Verification then saves each call to Smarty in the √ Verification Log object. Without it, only errors are saved. The object can grow very large.

The app has no tab for the object. To see the logs, make a tab for it. Open Setup. In the Quick Find box, type Tabs. Click Tabs. Under Custom Object Tabs, click New.

Pick the object √ Verification Log. Pick any Tab Style; it is required. Click Next twice. Click Save. A user also needs access to the object and its fields.

The tab opens on Recently Viewed. Pick the list view All to see every log. In TAF's test, phone checks made no log record.

16Verify records with a Flow

Optional. A way without code to verify records on any object.

A record-triggered Flow can run the Verify Address action after a save. This chapter uses the custom object from Verify addresses on a custom object.

1. 1Mark step 1 done

   Open Flows. Click New Flow. Click Record-Triggered Flow.

   In the Quick Find box, type Flows. Click Flows. Click New Flow. Flow Builder opens in a new browser tab. Under Frequently Used, click Record-Triggered Flow.

   Copy link
2. 2Mark step 2 done

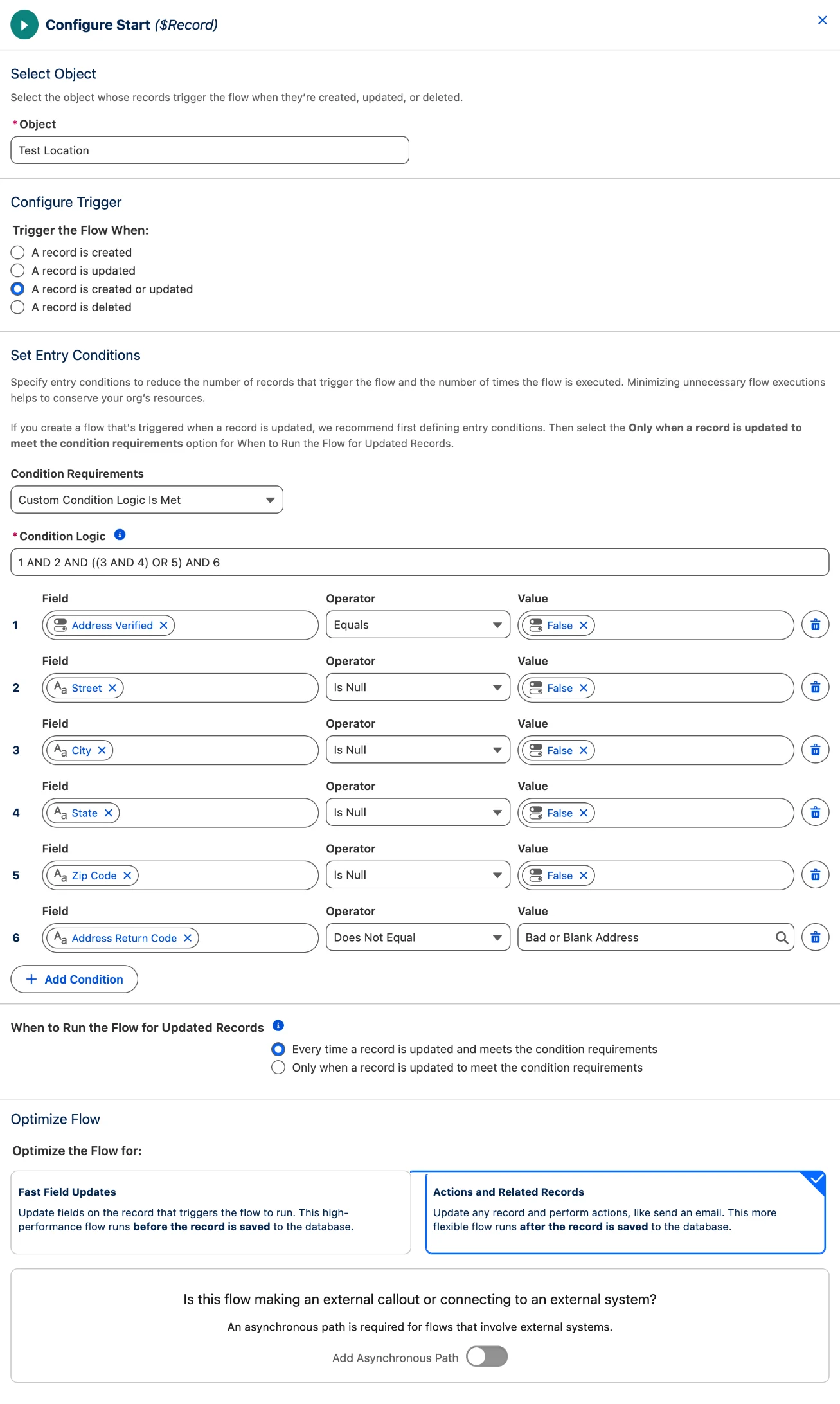

   Set the object and the trigger.

   Setting	Value
   Object	Your object, for example Location
   Trigger the Flow When	A record is created or updated
   Condition Requirements	Custom Condition Logic Is Met

   Copy link
3. 3Mark step 3 done

   Add the six conditions.

   Click Add Condition for each new row. For True or False, pick the value under Global Constants.

   Row	Field	Operator	Value
   1	Address Verified	Equals	False
   2	Street	Is Null	False
   3	City	Is Null	False
   4	State	Is Null	False
   5	Zip Code	Is Null	False
   6	Address Return Code	Does Not Equal	Bad or Blank Address

   Copy link
4. 4Mark step 4 done

   Type the condition logic.

   The Condition Logic box sits above the conditions. Replace its value with:

   1 AND 2 AND ((3 AND 4) OR 5) AND 6Copy

   The Flow goes on when the address is not verified, Street is filled, and City and State, or Zip Code, are filled. With row 6, the Flow does not send a bad address to Smarty again and again.

   Copy link
5. 5Mark step 5 done

   Pick Every time a record is updated. Keep Actions and Related Records.

   Under When to Run the Flow for Updated Records, pick Every time a record is updated and meets the condition requirements. Under Optimize the Flow for, keep Actions and Related Records, the default. This Flow runs after the save.

   Leave Add Asynchronous Path off, at the bottom of the panel.



   Copy link
6. 6Mark step 6 done

   Click + under the start. Click Action. Search for Verify. Pick Verify Address.

   The list shows Verify Address, Verify Email and Verify Phone. For email addresses, pick Verify Email. For phone numbers, pick Verify Phone.

   Copy link
7. 7Mark step 7 done

   Type a Label. Set recordIds to the ID of the record.

   Type a Label, for example Verify. Under Set Input Values, click the recordIds box. Pick Triggering and your object, then Record ID. The box shows the value as a pill, for example Triggering Location__c > Record ID.



   Copy link
8. 8Mark step 8 done

   Click Save. Name the Flow. Click Activate.

   Type a Flow Label, for example Location Verify Address. Click Save. Click Activate.

   Copy link
9. 9Mark step 9 done

   Test the Flow with a new record.

   Make a record with a US address. Save. Wait a few seconds. Reload the page. The fields show the result. The check uses one lookup.

   Copy link

17Verify records with a batch job

Optional. For a first cleanup of all records, or a new check from time to time.

A batch job checks records on a schedule, up to 50 records in each batch. A large job can take a long time, because Salesforce runs Apex jobs slowly on purpose. Most orgs run one after the install to clean up old records, then use background checks or Flows.

1. 1Mark step 1 done

   Set the Active Job ID Field for the object.

   Make a Text field with a length of at least 18 on the object, for example AV Job ID. On the last page of the field wizard, untick the page layouts. The users who run the job need read and write access to it.

   On the Automation tab, click Edit beside the object. Type the API name of the field in Active Job ID Field. Click Save. Reload the page.

   Copy link
2. 2Mark step 2 done

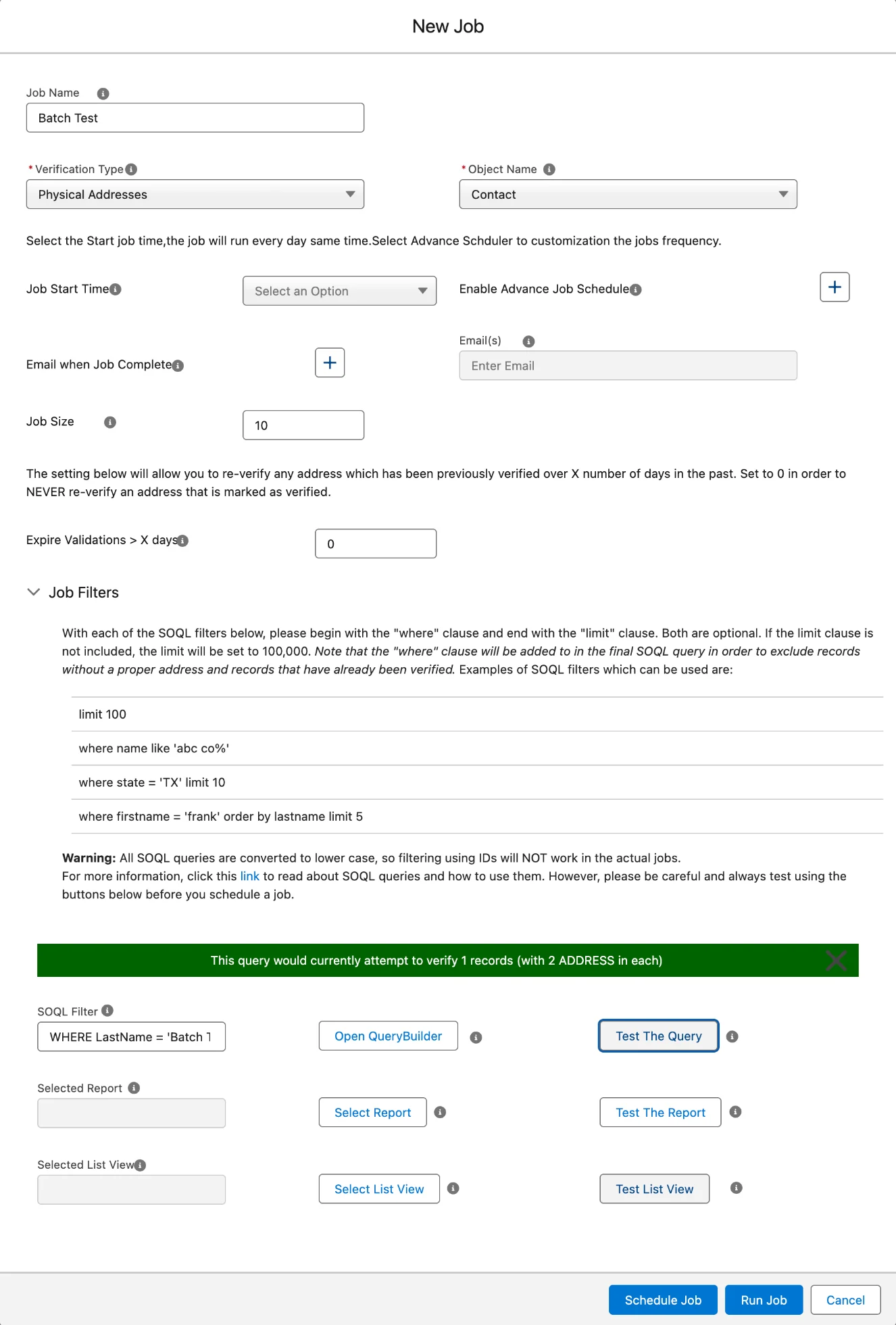

   On the Automation tab, open Batch Jobs. Click New Job.

   Copy link
3. 3Mark step 3 done

   Fill in the job.

   Field	Value
   Job Name	Optional. Any name.
   Verification Type	Physical Addresses, Emails or Phone Numbers. Each kind needs its own job.
   Object Name	Your object. If it is not in the list, add it with Add Supported Object.
   Job Start Time	Empty to run the job now. With a time, the job runs every day at that time.
   Enable Advance Job Schedule	For another schedule than every day.
   Email when Job Complete	Optional. It emails the current user when the job verified records. Do not use it on large jobs, because it slows them down.
   Email(s)	The addresses that get the email, with commas between them.
   Job Size	The number of records in each batch. Keep 10, the value that shows.
   Expire Validations > X days	0, or a number of days. A record verified longer ago than that is checked again. With 0, the job never checks a verified record again.

   If a red message says that the Active Job ID text field is required, close the window and do step 1.



   Copy link
4. 4Mark step 4 done

   Under Job Filters, pick the records.

   Use one of three ways: a report from the Address Verification report folder, a list view of the object, or a SOQL Filter. Open QueryBuilder helps to write the filter. Click Validate, then Use Query.

   SOQL is the query language of Salesforce. A SOQL filter starts with WHERE, for example:

   WHERE State = 'TX' LIMIT 5Copy

   • For a first test, add LIMIT 5 at the end of the filter. A filter can also be LIMIT 5 alone.
   • Without LIMIT, the job takes up to 100,000 records.
   • Do not filter on a record ID, not even an 18-character one. The job changes the filter to lower case, so an ID does not match.
   • A filter can end with ORDER BY and LIMIT, for example WHERE State = 'TX' ORDER BY LastName LIMIT 5. With LIMIT, ORDER BY sets which records the job takes.
   • If Test The Query shows Query Failed, see Test The Query shows Query Failed.
   • The first time you use a list view, you must add a remote site setting. See Address Verification cannot reach Smarty.

   Copy link
5. 5Mark step 5 done

   Click Test The Query.

   A green bar shows how many records the job can touch, for example This query would currently attempt to verify 1 records (with 2 ADDRESS in each). The count also holds records that are empty or verified already.

   If it reads No object is selected for query, please select object first !!!, pick the object in Object Name again.

   For a report or a list view, click Test The Report or Test List View.

   Copy link
6. 6Mark step 6 done

   Click Run Job, or Schedule Job.

   Run Job runs the job once, now. Schedule Job runs it on the schedule you set.

   Copy link
7. 7Mark step 7 done

   Watch the job.

   Click Go to Apex Jobs for a job that runs now, or Go to Scheduled Jobs for a later one. If the button does nothing, open Setup and type Apex Jobs in the Quick Find box. To see or delete a job, use View or Delete in the Batch Jobs list. Do not abort a job in Apex Jobs.

   In the Batch Jobs list, the Status of the job reads Completed at the end. A job that found no record to check ends with an empty Status.

   Copy link
8. 8Mark step 8 done

   Schedule the weekly cleanup of Deputy records.

   Batch jobs leave records in a hidden object named Deputy. A scheduled job deletes them. Open Setup. In the Quick Find box, type Apex Classes. Click Apex Classes. Click Schedule Apex.

   Field	Value
   Job Name	Address Verification Batch Cleanup
   Apex Class	DeputyRecordDeletionBatch
   Frequency	Weekly. Tick one day. For a daily cleanup, tick every day.
   Start, End	Salesforce fills in an End date one month ahead. Set it years ahead, or the cleanup stops.
   Preferred Start Time	Out of work hours, after your batch jobs

   Click Save.

   Copy link

18Verify records sent by email

Optional. For records that a site guest user or another system makes.

A guest user of a Salesforce Site often lacks the rights to verify a record. An email service solves this. Address Verification sends an email with the record ID to a Salesforce email address. Salesforce then verifies the record as a user who has an Address Verification permission set.

It also helps when a Flow runs as a user who lacks the rights. The email service moves the check to a user who has them.

1. 1Mark step 1 done

   Open Setup. Open Email Services. Click New Email Service.

   In the Quick Find box, type Email Services. Click Email Services. Click New Email Service.

   Copy link
2. 2Mark step 2 done

   Fill in the email service. Then click Save and New Email Address.

   Field	Value
   Email Service Name	Any name, for example Address Verification
   Apex Class	AddressVerificationForSiteRecords
   Accept Attachments	None
   Advanced Email Security Settings	Off
   Accept Email From	Empty, or the one address that sends the emails
   Active	Ticked

   The error routing below is optional. It helps you see emails that fail.

   Copy link
3. 3Mark step 3 done

   Fill in the email address. Then click Save.

   Field	Value
   Email Address Name	Letters, numbers and underscores, no spaces. For example Address_Verification
   Email address	Any value, for example address_verification
   Active	Ticked
   Context User	Salesforce fills in your name. Pick a user with Address Verification (Admin) or Address Verification (User).
   Accept Email From	Salesforce fills in your email address. Clear it, or type the one address that sends the emails.

   Copy link
4. 4Mark step 4 done

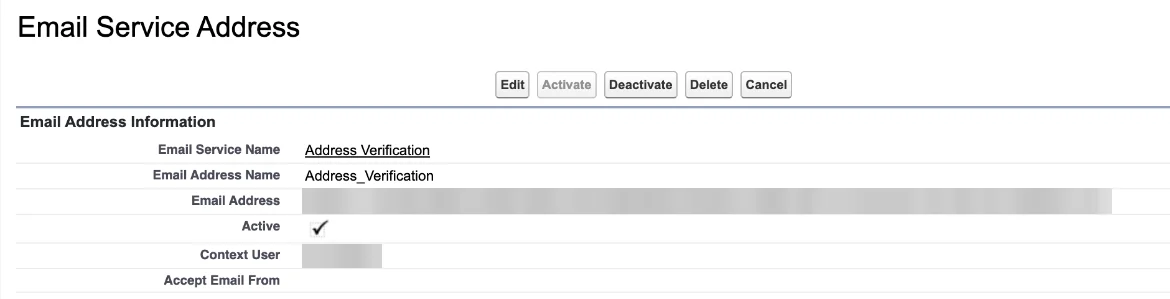

   Copy the email address that Salesforce makes.

   The record shows a long email address that ends in apex.salesforce.com. Copy all of it. Keep it private. Anyone who has it can start checks in your org, and each check uses a lookup.



   Copy link
5. 5Mark step 5 done

   Send a test email to that address.

   Send it from any address, or from the address in Accept Email From, if you set one. Use any subject. As the body, paste this text:

   {
       "vType":"Address",
       "sObjectName":"Object Name",
       "recordIds":[
           "Record Id"
       ],
       "isRecheck":false
   }

   Copy

   Replace Object Name with the API name of the object, for example Location__c. Replace Record Id with the ID of a test record that is not verified. For more records, add more IDs with commas between them.

   To check email addresses, type Email in place of Address.

   Copy link
6. 6Mark step 6 done

   Wait a minute. Check the test record.

   The record shows the result of the check, for example Confirmed. It used one lookup.

   Copy link
7. 7Mark step 7 done

   Paste the address into Email Service Address. Then click Save All Settings.

   On the setup page, open the Authentication tab. Under Optional Settings, paste the address into Email Service Address. Click Save All Settings.

   If a button floats over the box, see A button on the setup page covers a field.

   From now on, records with an address from a guest user with Address Verification (Guest User) get verified through the email service.

   Copy link

19Add autocomplete to New and Edit

Optional. Needs a Smarty plan with autocomplete.

Autocomplete shows a list of addresses while a user types in Street. A click on one address fills the other address fields. It works in the New and Edit windows of an object, for physical addresses only.

1. 1Mark step 1 done

   Check that your Smarty plan includes autocomplete.

   Autocomplete uses the default Smarty keys on the Authentication tab. If autocomplete runs on another Smarty account, paste its keys in Autocomplete Domestic. The fields are Auth-Id (only for AutoComplete) and Auth-Token (only for AutoComplete). Then click Save All Settings.

   Do this in each sandbox and in production.

   Copy link
2. 2Mark step 2 done

   Put the address fields in their own section on each page layout.

   Open Setup. Click Object Manager. Click your object. Click Page Layouts. Open each layout that your users work with.

   The address fields must sit in a section named Address Information, with no other fields in it. If you set a Layout Section Name for the object on the Automation tab, use that name. See The options of an object.

   If the layout has no such section, drag Section from the palette onto the layout. Name it Address Information. Move the address fields into it. Salesforce can put the new section at the top of the layout.

   Click Save.

   Copy link
3. 3Mark step 3 done

   Check the address entry on the Data Mapping tab.

   The address must have an entry. If it has none, add one. See Set up the addresses, or step 4 of Verify addresses on a custom object.

   Country must be mapped, also when you verify US addresses only. The Country field must sit in the section from step 2.

   For more lines of the street, map Street 2. Then tick Use Street 2 at the bottom of the entry. Street 3 and Street 4 work the same way.

   To block the save of a bad address, tick Stop record creation on bad addresses. It removes the Use as it is button. See Address options.

   Copy link
4. 4Mark step 4 done

   Override the New button, the Edit button, or both.

   Override New for autocomplete on new records. Override Edit for autocomplete when a user changes a record.

   In Object Manager, click your object. Click Buttons, Links, and Actions. Click the arrow at the end of the New row. Click Edit.

   Under Lightning Experience Override, pick Lightning component. Pick this component. Click Save.

   smartystreets:AutoCompleteNewCopy

   Salesforce then opens Fields & Relationships. For the Edit row, click Buttons, Links, and Actions again. Do the same with this component:

   smartystreets:AutoCompleteEditCopy

   With the Edit override, Salesforce turns off inline editing on the object. Many orgs make an action that opens AutoCompleteEdit in place of the override.

   To remove an override later, click Edit on its row. Under Lightning Experience Override, pick Use the Salesforce Classic override. Click Save. Click OK.



   Copy link
5. 5Mark step 5 done

   Wait 10 seconds. Open the tab of the object. Click New, or open a record and click Edit.

   Scroll to the address section. It looks a little different. If it looks the same, reload the page. Lightning can take a few reloads to show the new window.

   You can also untick Enable secure and persistent browser caching to improve performance in Setup, Session Settings. Tick it again after the window shows.

   The window can show no fields, with the red line Named credential is not configured. Then do Set up the Named Credential for autocomplete first. The window then also shows Please add Section Address Information In the layout, even when the section is there.

   Copy link
6. 6Mark step 6 done

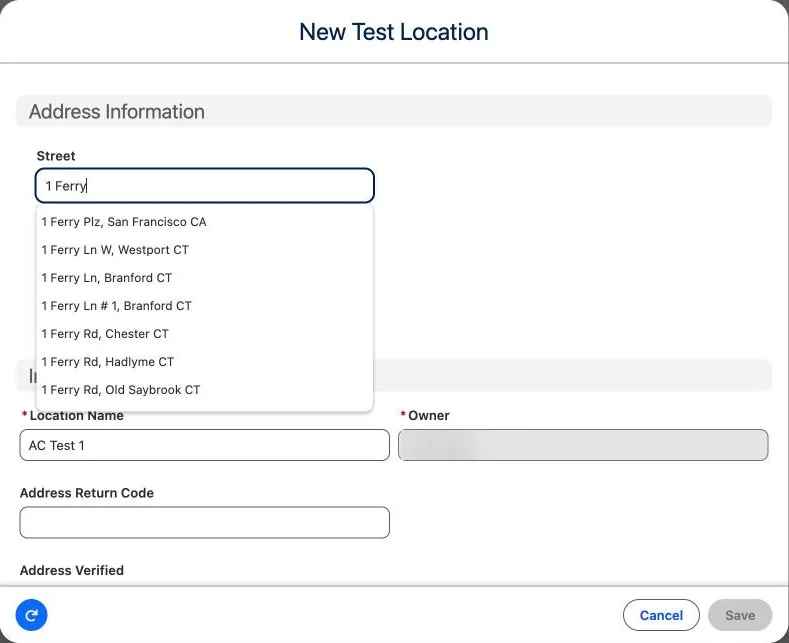

   Type a street in Street. Click an address in the list. Click Save.

   A list of addresses opens as you type. It shows street addresses, not the names of buildings. While it is open, Save is greyed out.

   After the click, Street, City and State fill in. Save checks the address with Smarty and uses one lookup. The check fills in Zip Code and the other result fields.

   Country stays empty unless Fixed Name for USA Verifications is set. See Options on the Authentication tab.

   When Smarty cannot verify an address, a window reads YOU ENTERED AN UNVERIFIED ADDRESS. Click Go Back to fix the address, or Use as it is to save it anyway. The record then shows Bad or Blank Address.

   Stop record creation on bad addresses removes the Use as it is button.



   Copy link

Users who cannot build the window

The first time a user opens the window, it takes a little longer. It builds a copy of the screen for later use. For that, the user needs the permissions Customize Application and API Enabled, from the profile or a permission set. The Address Verification permission sets do not give them.

For users who cannot have these permissions, an admin copies the screen to their profile:

1. 1Mark step 1 done

   As an admin, open the New or Edit window of the object once.

   Copy link
2. 2Mark step 2 done

   On the setup page, click the More... tab.

   Copy link
3. 3Mark step 3 done

   Under Page Layout Sync, pick the Object and the Profile.

   Pick the profile of the users who lack the two permissions.

   Copy link
4. 4Mark step 4 done

   Click Sync Page Assignment.

   An Apex job copies the screen to that profile.

   Copy link

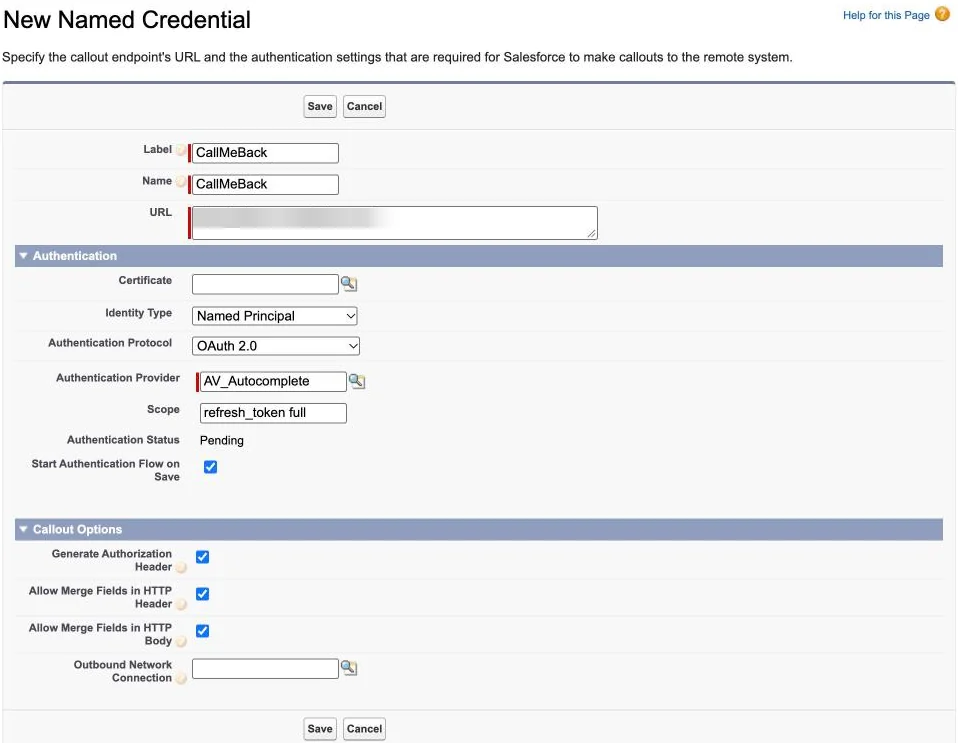

20Set up the Named Credential for autocomplete

Needed when autocomplete shows the message Named credential is not configured. TAF's test org needed it.

Autocomplete reads the page layout through the Salesforce API. In some orgs, that call needs a Named Credential: a saved sign-in that Salesforce uses for a call to a web address.

The setup has three parts. An Auth. Provider tells Salesforce how to sign in. An External Client App, the newer form of a connected app, gives the rights. The Named Credential then joins them.

1. 1Mark step 1 done

   Make an Auth. Provider.

   Open Setup. In the Quick Find box, type Auth Providers, with no dot. Click Auth Providers. Click New.

   Field	Value
   Provider Type	Salesforce
   Name, URL Suffix	Any name, for example AV_Autocomplete. URL Suffix fills itself.
   Consumer Key, Consumer Secret	NA in both. Step 6 replaces them.
   Default Scopes	refresh_token full
   Use Proof Key for Code Exchange (PKCE) Extension	Ticked. It is ticked at first.
   Include Consumer Secret in SOAP API Responses	Ticked. It is ticked at first.

   Click Save.

   Copy link
2. 2Mark step 2 done

   Copy the Callback URL.

   The saved Auth. Provider shows the Callback URL under Salesforce Configuration, at the bottom of the page. Keep it for step 4.

   Copy link
3. 3Mark step 3 done

   Make an External Client App.

   In the Quick Find box, type External Client App Manager. Click it. Click New External Client App.

   Field	Value
   External Client App Name	Any name, for example AV Autocomplete
   Contact Email	Your email address
   Contact Phone	Your phone number
   Distribution State	Local

   Copy link
4. 4Mark step 4 done

   Turn on OAuth for the app. Then click Create.

   Open the section API (Enable OAuth Settings). Tick Enable OAuth. In Callback URL, paste the URL from step 2.

   Under OAuth Scopes, move these three to the selected list:

   • Manage user data via APIs (api)
   • Full access (full)
   • Perform requests at any time (refresh_token, offline_access)

   Lower down, under Flow Enablement, find Security. Tick Require secret for Web Server Flow and Require secret for Refresh Token Flow. Leave the greyed boxes as they are.

   Click Create. A message reads Success! External Client App created successfully.

   Copy link
5. 5Mark step 5 done

   Copy the Consumer Key and the Consumer Secret.

   Click the Settings tab. Open OAuth Settings. Under App Settings, click Consumer Key and Secret. It opens in a new window. Salesforce can send a code to your email first. Copy both values to a safe place.

   Copy link
6. 6Mark step 6 done

   Put the key and the secret in the Auth. Provider.

   Open the Auth. Provider from step 1. Click Edit. Replace NA in Consumer Key and Consumer Secret. Click Save.

   Copy link
7. 7Mark step 7 done

   Switch to Salesforce Classic.

   The next step does not work in Lightning. Click your profile picture. Click Switch to Salesforce Classic.

   Copy link
8. 8Mark step 8 done

   Make a Named Credential.

   Open Setup. In the Quick Find box, type Named Credentials. Click Named Credentials. Click New Named Credential. Leave the entry old_CallMeBack as it is. It comes with the app.

   Field	Value
   Label, Name	CallMeBack. The app looks for this name when Name Of Named Credential is empty.
   URL	The address of your org up to salesforce.com/, from the address bar in Classic. For example https://yourcompany.my.salesforce.com/
   Identity Type	Named Principal
   Authentication Protocol	OAuth 2.0
   Authentication Provider	The Auth. Provider from step 1
   Scope	refresh_token full
   Start Authentication Flow on Save	Ticked. It ticks itself.
   Generate Authorization Header	Ticked. It is ticked at first.
   Allow Merge Fields in HTTP Header	Ticked
   Allow Merge Fields in HTTP Body	Ticked

   Authentication Provider and Scope show after you pick OAuth 2.0.



   Copy link
9. 9Mark step 9 done

   Click Save. Sign in. Allow access on the two screens.

   Salesforce opens a login page. Sign in with your own user. Two screens ask you to allow access. Allow both. The Named Credential then shows Authentication Status: Authenticated as your user.

   In a sandbox, the sign-in needs one change first. See The Named Credential sign-in fails in a sandbox.

   If INSUFFICIENT PRIVILEGES shows here, ask Salesforce support to turn on External Client Apps in your org.

   Copy link
10. 10Mark step 10 done

    Paste the name in Name Of Named Credential. Click Save All Settings.

    Switch back to Lightning. On the setup page, open the Authentication tab. Scroll to the bottom. Type the Name from step 8 in Name Of Named Credential. Click Save All Settings. A message reads Successfully saved the setting.

    If a button floats over the box, see A button on the setup page covers a field.

    Copy link
11. 11Mark step 11 done

    Open the New window again. Type a street.

    The window shows its fields, and the list of addresses opens, with no red message.

    Copy link

21Link a new child record to its parent

Optional. For a new record made from a related list, for example a Contact from an Account.

The autocomplete windows stand alone. A Contact made from an Account with AutoCompleteNew does not fill in the Account. The user must pick the Account again.

A small Lightning component of your own fixes this. It opens AutoCompleteNew from an action on the parent record, with the parent filled in. It cannot override the New button of the child object.

1. 1Mark step 1 done

   Open the Developer Console.

   Click the gear icon at the top right. Click Developer Console. It opens in a new window.

   Some orgs show Web Console in the menu in its place. Then type the address of your org in the browser, with this at the end:

   /_ui/common/apex/debug/ApexCSIPageCopy

   Copy link
2. 2Mark step 2 done

   Click File, New, Lightning Component. Type a name. Click Submit.

   A window named New Lightning Bundle opens. Use a name that says what the component makes, for example NewContactWithAddress. Leave the boxes under Component Configuration unticked.

   Copy link
3. 3Mark step 3 done

   Replace all the code with the code below.

   Delete all the code first. Then paste the code below. Do not type it, because the editor adds closing tags as you type.

   This is the file child_object_create_quick_action in the lightning folder of the Address Verification repository on GitHub. Take it from there for the newest version.

   <aura:component implements="flexipage:availableForRecordHome,force:lightningQuickActionWithoutHeader,force:hasRecordId,force:hasSObjectName">
       <aura:attribute name="sObjectName" type="String" access="global" description="The parent sObject Name"/>
       <aura:attribute name="recordId" type="String" access="global" description="The parent record Id"/>
       <!-- CHANGE THE "OBJECT" NAME BELOW TO THE API NAME OF THE CHILD OBJECT and THE LOOKUP FIELD NAME -->
       <!-- Example, if for the Contact object, use: "Contact-AccountId"                                 -->
       <!-- After version 6.24.11, you can also determine if the component dumps the user in the child   -->
       <!-- record (the default) or if they remain on the parent record. Usage = redirectTo="parent".    -->
       <smartystreets:AutoCompleteConnector sObjectName="{!v.sObjectName}" recordId="{!v.recordId}" currentsObjectInfo="OBJECT-FIELD"></smartystreets:AutoCompleteConnector>
   </aura:component>

   Copy

   Copy link
4. 4Mark step 4 done

   Replace OBJECT-FIELD. Click File, Save.

   Type the API name of the child object, then a hyphen. After it, type the API name of the lookup field to the parent. For a Contact under an Account, type Contact-AccountId.

   To keep the user on the parent record after the save, add redirectTo="parent" to the smartystreets:AutoCompleteConnector tag. This works from version 6.24.11.

   Close the Developer Console.

   Copy link
5. 5Mark step 5 done

   Make an action on the parent object.

   In Object Manager, click the parent object, for example Account. Click Buttons, Links, and Actions. Click New Action.

   Field	Value
   Action Type	Lightning Component
   Lightning Component	The component from step 2, for example c:NewContactWithAddress
   Height	0. The box shows 250px at first.
   Label	Any label, for example New Contact
   Name	Any name, for example New_Contact. It fills itself.

   Click Save.



   Copy link
6. 6Mark step 6 done

   Add the action to the page layout of the parent.

   Click Page Layouts. Open the layout. In the palette, click Mobile & Lightning Actions. Drag the action into the Salesforce Mobile and Lightning Experience Actions section.

   If the section asks you to override the predefined actions, click the link first.

   In the related list of the child object, remove the New button. Then users do not mix up the two buttons. This is optional, but TAF advises it.

   Click Save. Do the same on each layout that needs the action.

   Copy link
7. 7Mark step 7 done

   Open a parent record. Click the action.

   The action can sit in the menu under the arrow. The window for the new record opens after a few seconds, with the parent already filled in.

   Street, City and State fill in from the list. Save opens the new record and uses one lookup.

   Copy link

22Verify on the record page

Optional. Edit and verify an address, an email or a phone number on the record page itself.

Three components put an edit box with a check on a Lightning record page: inlineVerifyAddress, inlineVerifyEmail and inlineVerifyPhone.

An address

The address component also works in Dynamic Forms, with some limits.

1. 1Mark step 1 done

   Check that autocomplete works on the object.

   The address component needs autocomplete and the External Client App. See Add autocomplete to New and Edit and Set up the Named Credential for autocomplete.

   Copy link
2. 2Mark step 2 done

   Open a record. Click the gear icon. Click Edit Page.

   Copy link
3. 3Mark step 3 done

   Add inlineVerifyAddress to a column.

   inlineVerifyAddressCopy

   Find it under Custom - Managed. Drag it onto a column. Salesforce lets you put it in some places only.

   If the drag does not work, click a component in the column. Click the + above or below it. Then click inlineVerifyAddress.

   Copy link
4. 4Mark step 4 done

   Click the component. Fill in its properties.

   Fill in all of them.

   Property	Value
   Address Configuration Name	The address entry. The list shows only the entries of this object.
   Object API Name	The API name of the object, for example Location__c
   Street Field API Name, City Field API Name, State Field API Name, Country Field API Name, Postal Code Field API Name	The API name of each address field, not its label
   Address Label	The name of the address on the page



   Copy link
5. 5Mark step 5 done

   Click Save. Activate the page, if Salesforce asks.

   If a window named Inline edit disabled shows, click Save. It shows when the Edit button has an override.

   Activate it as in step 4 of Add the Verify and Confirm button. Then click the back arrow.

   Copy link
6. 6Mark step 6 done

   Click the pencil beside the address. Pick an address from the list. Click Save.

   The pencil opens Country, Street, City, State and Zip Code. Type the street with its type, for example 415 Mission St, so the list finds it.

   A green tick shows a confirmed address. Any other result shows an orange triangle and the message Address Verification Failed. This also happens when the record is verified, for example with Confirmed - Missing Secondary Info. Check Address Return Code for the result. The check uses one lookup.



   Copy link

An email address or a phone number

1. 1Mark step 1 done

   Check that the email or phone entry works.

   TAF turns on the email or phone add-on after you buy it. The field also needs its entry on the Data Mapping tab. See Check email addresses and phone numbers.

   Copy link
2. 2Mark step 2 done

   Open a record. Click the gear icon. Click Edit Page.

   Copy link
3. 3Mark step 3 done

   Add inlineVerifyEmail or inlineVerifyPhone to a column.

   Find it under Custom - Managed. Drag it onto a column. If the drag does not work, click a component in the column. Click the + above or below it. Then click the component.

   Copy link
4. 4Mark step 4 done

   Click the component. Fill in its properties.

   Property	Value
   Email Configuration Name, or Phone Configuration Name	The email or phone entry. An empty list means the field has no entry yet. Make it first.
   Object API Name	The API name of the object
   Field API Name	The API name of the email or phone field

   Copy link
5. 5Mark step 5 done

   Click Save. Activate the page, if Salesforce asks.

   Copy link
6. 6Mark step 6 done

   Change the value in the component. Press Enter, or click Save.

   The component checks the value and fills in the result fields. The check uses one lookup from your add-on.

   A valid result shows a green tick. Any other result shows a red message, for example Email Verification Failed for the result do_not_mail. Reload the page to see the result fields.

   Copy link

23Improve checks with Google Search

Optional. Not available at this time.

Google Search helps with an address that Smarty marks as bad, for example a street spelled in the local language.

Address Verification first sends the address to Smarty. If Smarty marks it as bad, the app searches Google for the address. If Google offers another spelling with Did You Mean?, the app sends that spelling to Smarty. When that check works, the address is verified. When it fails, the Footnotes say so.

Smarty fixes small spelling mistakes itself, so most addresses never go to Google.

1. 1Mark step 1 done

   Add Google as a remote site.

   Open Setup. In the Quick Find box, type Remote Site Settings. Click Remote Site Settings. Click New Remote Site.

   Field	Value
   Remote Site Name	Any name, for example Google_Search
   Remote Site URL	http://www.google.com
   Active	Ticked

   Click Save.

   Copy link
2. 2Mark step 2 done

   On the Options tab, tick Use Google Search. Click Save Settings.

   A message reads Setting is Saved Successfully.

   Copy link
3. 3Mark step 3 done

   Verify a test record with a hard address.

   Open a record whose address Smarty cannot verify. A small spelling mistake is not enough. Smarty fixes it itself, and the Footnotes end with Verified by SmartyStreets.

   Click the Verify action. Read the Return Code and Footnotes fields of that address. The check uses one or two lookups.

   At this time the check fails with Verification Failed. Untick Use Google Search again. See Verify fails with Unexpected character.

   Copy link

24Verify an address in a Flow screen

Optional. A job for a developer. Uses sample code from GitHub.

Address Verification can also check an address inside a screen Flow. TAF's sample Lightning components sit in the flows folder of the Address Verification repository on GitHub.

The README.md file of the flows folder gives the Flow Builder steps. Address Verification must be version 5.0 or later. For help, open a case.

25Read the results

Each check writes a result to the Return Code field of the address. It also writes the Footnotes and the Last Verified date. When the address is confirmed, the check ticks Verified.

Return codes for addresses

Return codes for phone numbers

Return codes for email addresses

Sub codes for email addresses

26If something does not work

Verify Addresses changes nothing

Address Verification skips an address whose Verified box is ticked. Change the address, or untick Verified, and click Verify Addresses again.

Also check that the address has an entry on the Data Mapping tab, and that the entry is Active. See Set up the addresses.

The check fails with Record failed to update

The message reads, for example: Account Billing Record failed to update. Possibly due to a Duplicate or Validation Rule.

If a bad address gets the result Bad or Blank Address, but a good address shows this message, the check worked and the save failed. In TAF's support cases, a wrong field in the mapping of the address caused it, not a duplicate rule or a validation rule.

To work around it, edit the address entry on the Data Mapping tab. Clear the optional fields you mapped, for example Geocode Precision. Click Save. Change the test address and verify it again. Then map the optional fields again, one at a time, and verify after each one. The last field you mapped before the error is the wrong one.

Verify fails on a custom object after you add the Flow

The message reads, for example: Location Site Record failed to update. Possibly due to a Duplicate or Validation Rule. (Changed)

The Flow that marks changed addresses has only six conditions. TAF's PDF guide shows six. Add row 7 as in step 4 of Mark changed addresses on a custom object, and the logic from step 5.

In an active Flow, click Save As New Version. Then click Activate. Change the address of a test record and verify it again.

The check fails with Payment Required (402)

The message starts with ERROR: Payment Required. Please log into Smarty.com and update your payment information.

The Smarty plan has no lookups left. If you bought the plan through TAF, email [email protected] to add lookups. With your own Smarty account, contact Smarty.

If TAF sends new keys for international addresses, paste them in Address Verification International on the Authentication tab. Pick the license that TAF names, for example international-cloud. Then click Save All Settings.

A verified address shows Changed

Someone changed the street, the city, the state or the ZIP Code after the check. Address Verification then unticks Verified. Click Verify Addresses again. Field history shows who made the change. See Track address changes.

International addresses are not checked

Verify International is off, so Address Verification skips every address whose Country is not empty and is not a form of USA. See International addresses.

Verify on the setup page fails

• Paste the Auth ID and the Auth Token again, with no space before or after them.
• Check the License. It must match your Smarty plan.
• Click Save All Settings before you click Verify.

A new action or field does not show on the record page

Salesforce keeps a copy of record pages in the browser, so a change to a page layout can take a while to show. Log out of Salesforce and log in again. This clears the copy.

An entry window does not close after Save

Click Save once more. Then reload the setup page and check the entry. If you cannot see the Save button, zoom out in the browser or scroll right.

A button on the setup page covers a field

Save All Settings and Reveal Encrypted Settings float over the setup page. They can cover a button or a box, for example Verify or Email Service Address. Scroll up or down a little, so the field moves out from under them.

A custom object has no List View Button Layout

On a new custom object, List View Button Layout can stay hidden until Allow Search is on. In Object Manager, open the object. Click Details. Click Edit. Tick Allow Search. Click Save.

The Named Credential sign-in fails in a sandbox

A new Auth. Provider signs in at login.salesforce.com. A sandbox user signs in at test.salesforce.com. In a sandbox, open the Auth. Provider from the Named Credential chapter. Click Edit.

In Authorize Endpoint URL and Token Endpoint URL, replace login.salesforce.com with test.salesforce.com. Click Save. Then save the Named Credential again, and sign in.

The autocomplete window does not close

In the New window, the first click on Cancel can only close the list of addresses. If more clicks do nothing, open the tab of the object again. Nothing is saved.

Verify fails with Unexpected character

The message starts with Verification Failed and Unexpected character.

It shows when Use Google Search is on and Smarty cannot verify the address. The cause is a change on Google's side: since 2025, Google's search pages need JavaScript, so the app gets no Did You Mean? text. The check writes nothing to the record, and it uses two lookups. TAF is working on a fix.

On the Options tab, untick Use Google Search. Click Save Settings. Verify the record again. An address that Smarty cannot verify then gets Bad or Blank Address.

Test The Query shows Query Failed

The message reads Query Failed. Please try again. Run Job then shows Query Not Verified and makes no job.

A filter fails when a quoted value holds the words order by, for example WHERE LastName = 'Order By Test'. Use LIKE with part of the value:

Nobody gets the error emails

Type an address in Admin Emails. See step 7 of Connect Address Verification to Smarty.

Address Verification cannot reach Smarty

A new install adds these web sites in the third-party access window. An older install, or an install where the window was skipped, can lack some of them. Add each one you need as a remote site.

Open Setup. In the Quick Find box, type Remote Site Settings. Click New Remote Site. Type any name. Paste the address into Remote Site URL. Make sure Active is ticked. Click Save. Skip the sites for services you do not use, for example international checks.

27Update Address Verification

For later. These steps do not count in the setup progress.

TAF sometimes pushes a new version of Address Verification into every org. Some orgs are on an exclusion list and do not get these pushes. You can also install the newest version yourself at any time, from the install links on the change log. The AppExchange listing no longer updates an installed app.

1. 1Mark step 1 done

   Check the version you have.

   Open Setup. In the Quick Find box, type Installed Packages. Find √ Address Verification and read the Version Number column.



   Copy link
2. 2Mark step 2 done

   Open the Address Verification change log.

   The newest version and its install links sit at the top of the Address Verification change log. If your version matches the newest one, stop here.

   Copy link
3. 3Mark step 3 done

   Update a sandbox first.

   Click Install in a sandbox. Sign in to your sandbox and follow the install screens. The install page shows Upgrade in place of Install. If a screen asks who to install for, pick Install for All Users.

   Salesforce installs the newer version over the one you have. Your keys, address entries and settings stay in place.

   Copy link
4. 4Mark step 4 done

   Verify a test address in the sandbox.

   Follow Verify a test address. Make sure the result is written to the record.

   Copy link
5. 5Mark step 5 done

   Update production.

   Go back to the change log and click Install in production. Sign in to production and follow the same screens.

   Copy link
6. 6Mark step 6 done

   Check the version again.

   Open Installed Packages again. The Version Number now matches the top of the change log.

   Copy link

28Get help

Open a case if a step does not work. Give the link to the step and paste the exact error text.

Before you report a bug, update to the newest version. TAF works on bugs in the newest version only. See Update Address Verification.

Give TAF access to your org when you open a case, so the team can see the problem. See Give us access.

See what changed in each release in the Address Verification change log. Sample code for lists, triggers and Flows sits in the Address Verification repository on GitHub.

Found a mistake in this guide? Email support with the link to the step.

Rate Address Verification

If Address Verification helps you, leave a review on the AppExchange. If something is wrong, open a case first, so TAF can fix it with you.
